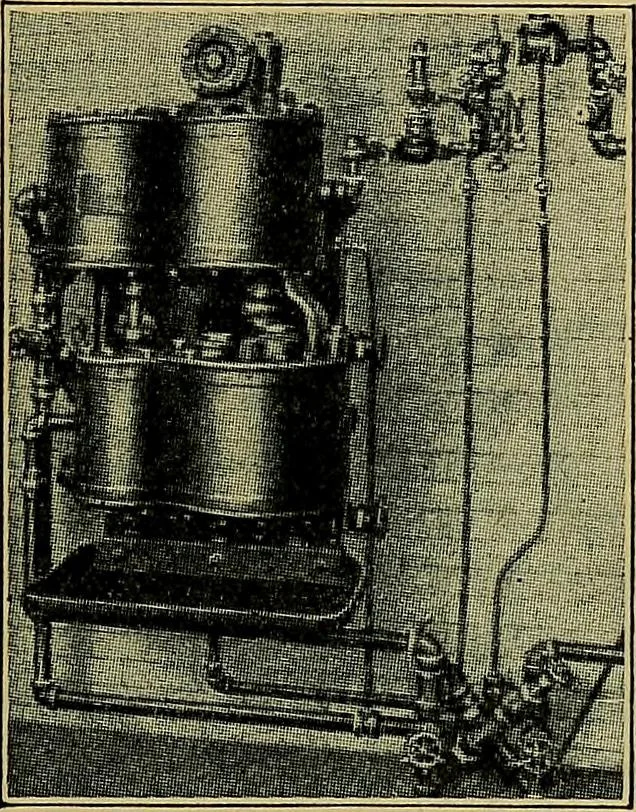

team exhaust pipe IVi l-% 1V2 1% Air admission pipe 1% ,iy2 1V2 2 Air delivery pipe.. 1% IVi Ui lVa Rated speed, single strokes per min. 120 120 100 100 Displacement at rated speed 35 cu. ft. 49 cu. ft. 66 cu. ft. 115 cu. ft Average actual displacement . . 20 cu. ft. 28 cu. ft 45 cu. ft. 50 cu. ft.… … Fig. 4. One of Two CrossCompound Compressors In-stalled at the Plant of Heath& Milligan Manufacturing Co.,Chicago, III. This type of compressor requires no foundation (being boltedto a column or wall) nor accurate alignment of parts. The usualmethod of installing a water jacketed compressor of…
