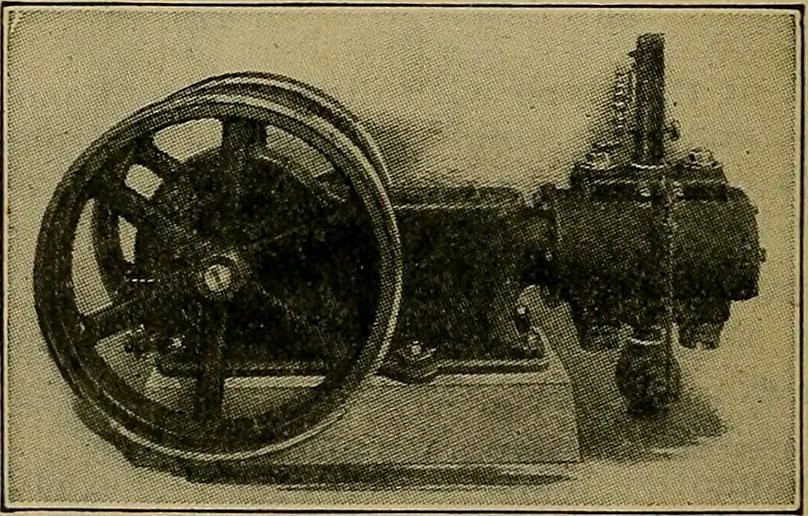

r for 20 drills of S^-in. size. 4 high pressure boilers (66 in. x 16 ft.) $ 6,000.00 Housing and installing boilers 2,000.00 Duplex compound air compressor 16,000.00 Housing and installing compressor 2,000.00 Pipe, 1,000 ft. 6-in. and 1,500 ft. 1-in 1,200.00 Machine shop and tools » 800.00 Total… … Fig. 7. Power Driven Single StageStraight Line Air Compressor. to which must be added the cost of the drill itself. If a morepermanent building is provided, the corresponding cost of thecompressor plant may be $1,500 per drill. The prices of air compressors vary with the type, size, equip-ment and…
