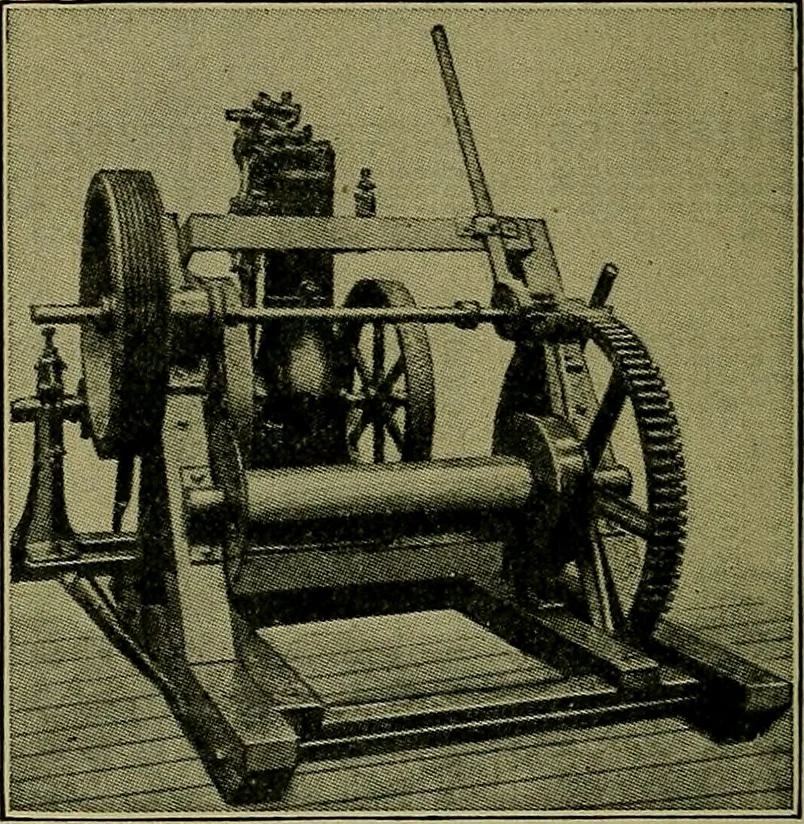

ngmotors, vary with the current, voltage, etc., but for estimatingpurposes it is generally true that motor driven hoisting enginescost more than steam driven engines complete with boilers. A hoist engine used 10 years on pile driving with minor re-pairs was then used three years. The original cost… … Fig. 114. Gasoline V Friction Hoist. Several types of hoisting engines are illustrated in Figs. Nos.110 to 115. GASOLINE HOIST A single drum 2% H. P. gasoline hoisting engine, having acapacity of 1000 lbs. on a single line. Engine, 2y2 H. P., gasoline, electric ignition, complete withbatteries,…
