Handbook of construction plant, its cost and efficiency (1914)
Dana, Richard Turner, 1876-1928 · Chicago, The M. C. Clark Publishing Co. · leaf 496

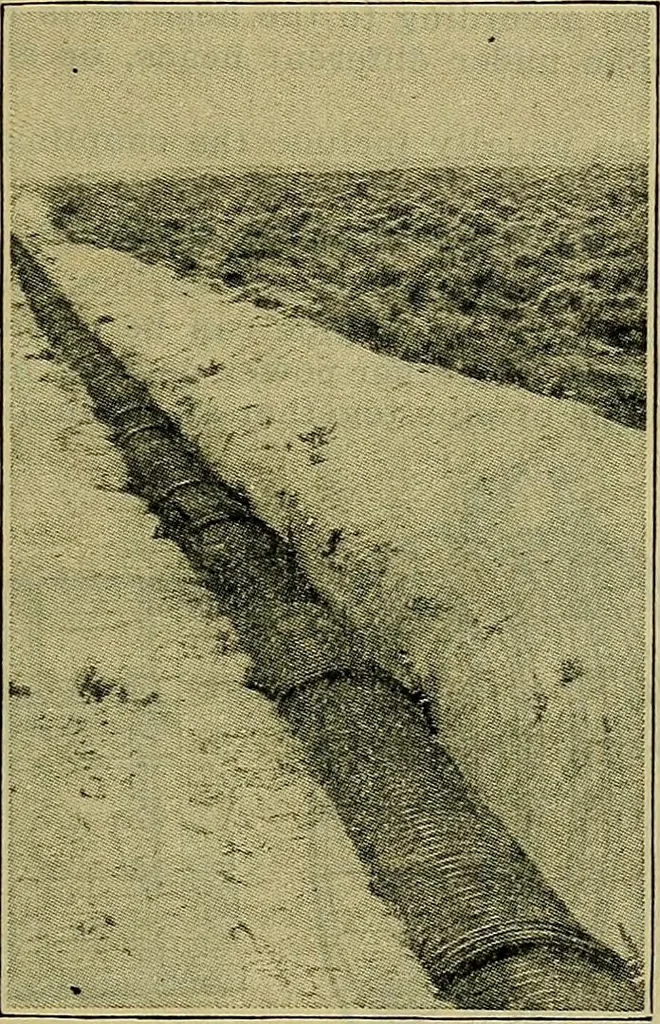

le shows the approximate weight of machinebanded pipe per lineal foot, banded for a head of 150 feet, andthe number of feet of pipe that can be loaded on a car. Size of Pipe Approx. Wt. per Ft. Number of (Inches) (Pounds) Feet in Carload 2 2% 9,000 3 3% 6,500 4 4y4 5.500 6 7y2 3,500 8 97/s 2,500 10… … 218. Twenty-four Inch Machine Banded Wooden Stave Pipe,Laid in Place, for Irrigation System. such fittings make their use undesirable. Lighter cast iron fit-tings, built with smoother hubs, are especially designed forwooden pipe. The approximate weights of the smaller sizes areas follows: 492…
