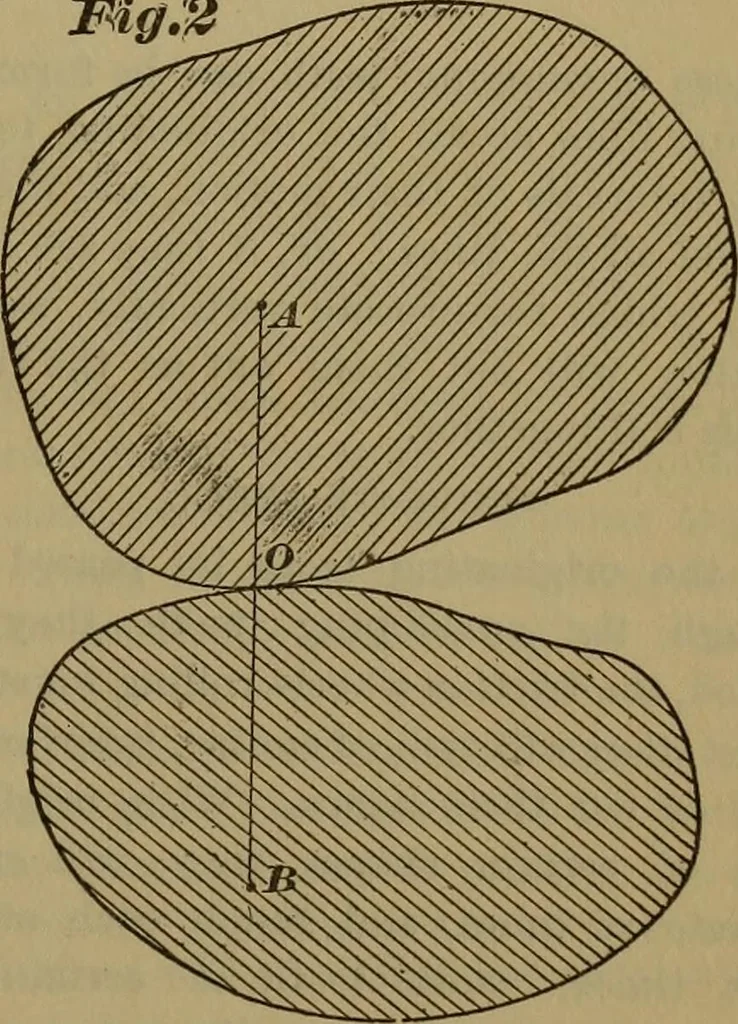

THE NORMAL. A normal to any curve is a straight lineiV^, Fig. 1, which is at right angles with it atthe point of intersection. T4g:2 … Curve andnortnalis Rolling ivlieels EOLLINQ WHEELS. If two friction wheels. Fig. 2, roll on eachother, their pitch lines touching at the pitchpoint 0, they are, for the instant, revolvingabout centers A and B, which are in A 0 B^the common normal or line of centers of thetwo curves at their common…
