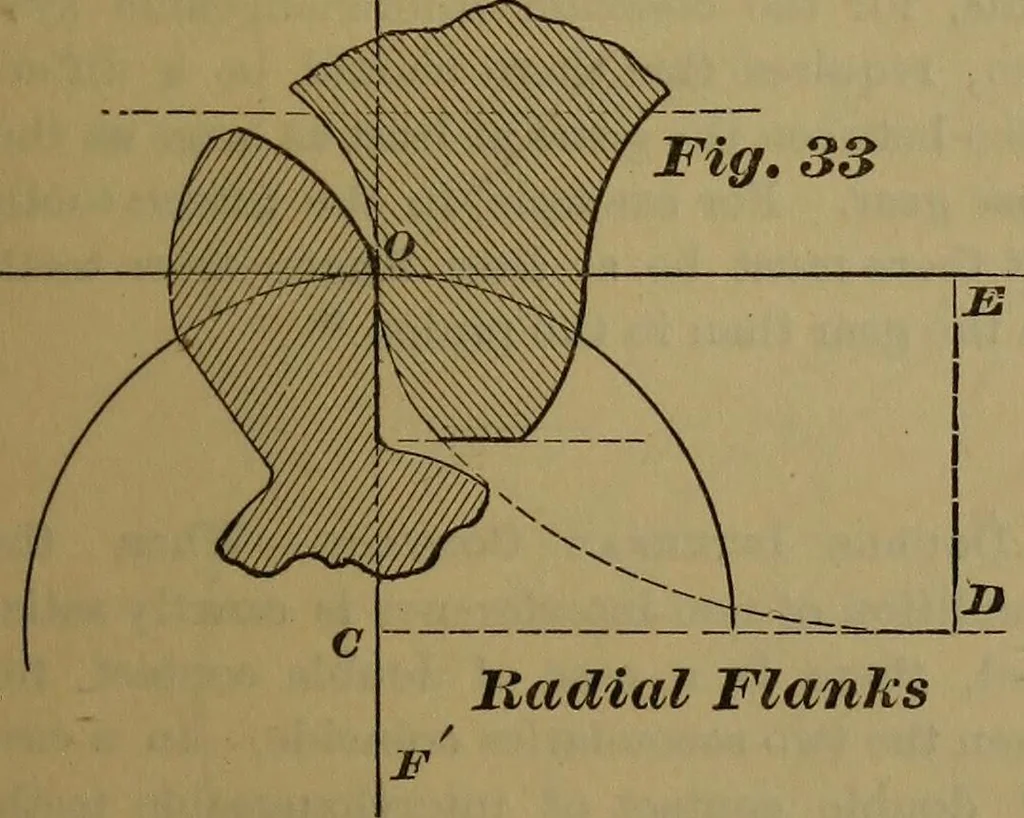

lobe Od f at THE NORMAL THEORY OF THE GEAR TOOTH CURVE. right angles at 0 with the pitch line, andmeeting it again at/, where Oe f=Oef. The face cycloid ODF forms a flank,OD F\ on the pinion, that is at right angleswith the pitch line at 0, meets it again at F,where OD F=ODF, and which takes… … When the radius 00 is equal to the heightFD, as in Fig. 33, the flank will be a straightdiameter OF,
