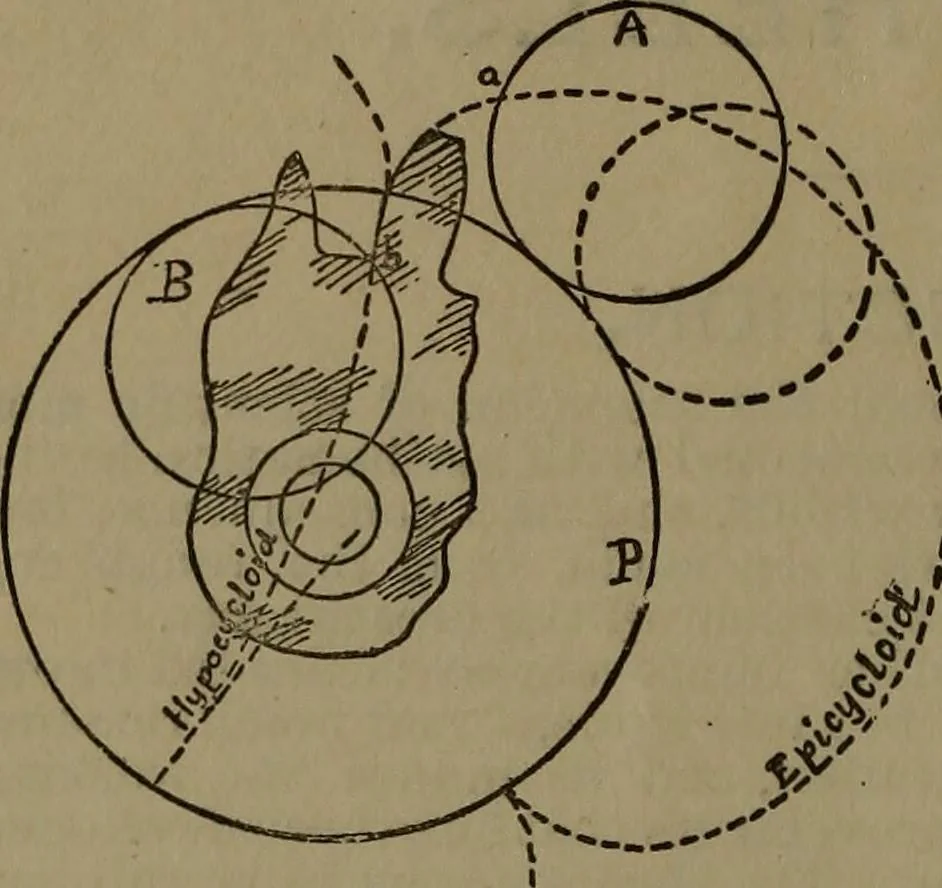

small circle5a,be rolled around onthe outside of the pitch circle,p, a fixed^ tracing point, a, in its edge, will trace• out the dotted line called an epicycloid,•and a small part of this curve near theI pitch line, usually one sixth of its fulliiy/ height,forms the face of the tooth. Similarly, if… … FIG. 3. THE EPICYCLOIDAL TOOTH.
