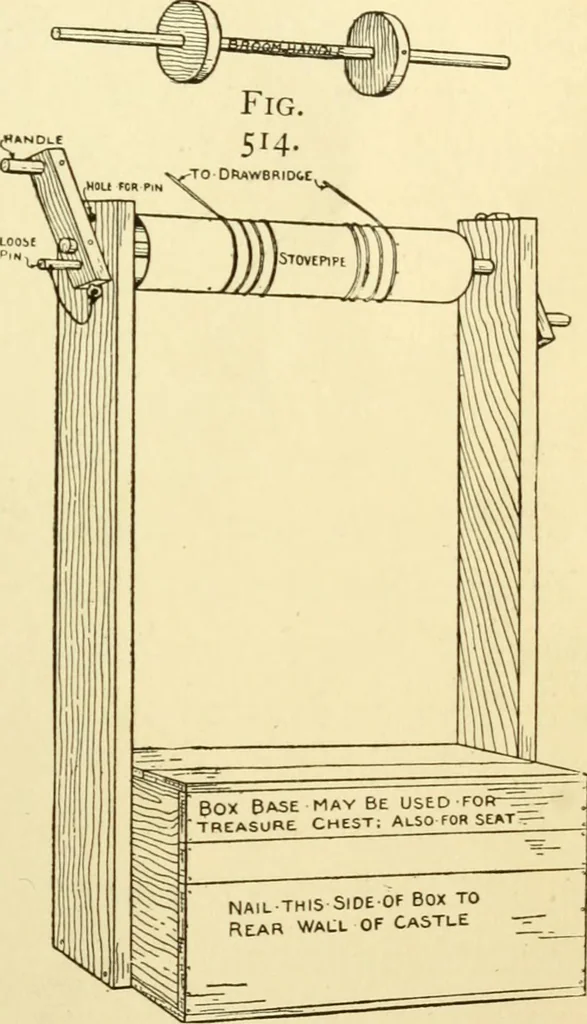

oneendof the pieces; pull themthrough holes A as far asthe knotted ends will per-mit ; run them around theends of the draw^bridge,up through slots B, overpulleys C, through thescrew-eyes Z^ on the counter-balances, and through screw-eyes E (Fig. 511). Thenpull up the drawbridge asfar as it will go,… … FiG. 513. Fig. 513.—Windlass for raising the Drawbridge.(You may make and use one of these instead of the counterbalances shown in Fig. 511.) Fig. 514. — Shaft for Stovepipe Drum. 412 HANDICRAFT FOR HANDY BOYS balances, if you wish to make one. Figure 513 shows asimple scheme, requiring a section…
