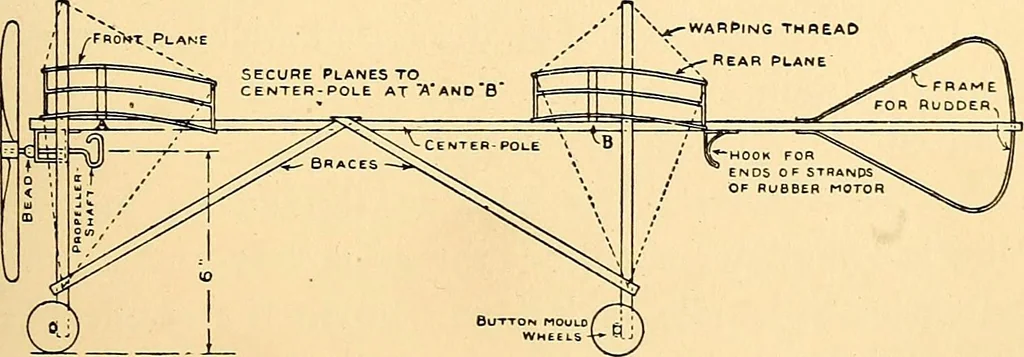

. Unless you have had some experience in reading me-chanical drawings, there is one thing which may puzzleyou, and which I shall explain. If you look at the pro-peller in Figs. 398 and 399, you will see that it is shownshorter in the plan than in the front elevation ; the plandoes not, in this… … Fig. 400. — Side Elevation of Monoplane Model shown in Fig. 397.(Scale l = 1.) 320 HANDICRAFT FOR HANDY BOYS way in the side elevation (Fig. 400), which shows it asit would be seen in a side view when it is turned asshown in the front elevation. As all other portions setat an angle are…
