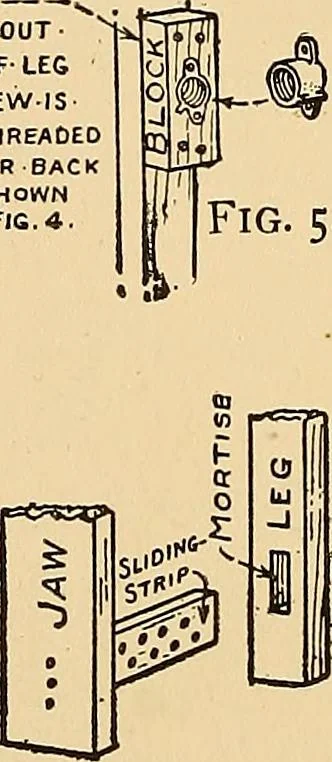

ng pieces of 10-inch board between theaprons, as shown in Fig. 1. Figures 3, 4, and 5 show the details for makingThe Bench-vise. Cut the jaw about 31 inches long outof a piece of i-J-inch or 2-inch stuff 6 inches wide, andthe sliding strip 3 inches wide and 14 inches long outof a 1-inch board, and… … Fig. 4. Fig. 3. Figs. 3-5. — Details of the Bench-vise. THE HOME WORKSHOP 7 By nailing the jaw to the end of the strip, as in Fig.3, it is necessary to mortise the bench leg for it toslide through, while if you set the strip into the side ofthe jaw, as in Fig. 4, a pocket must be built on to the…
