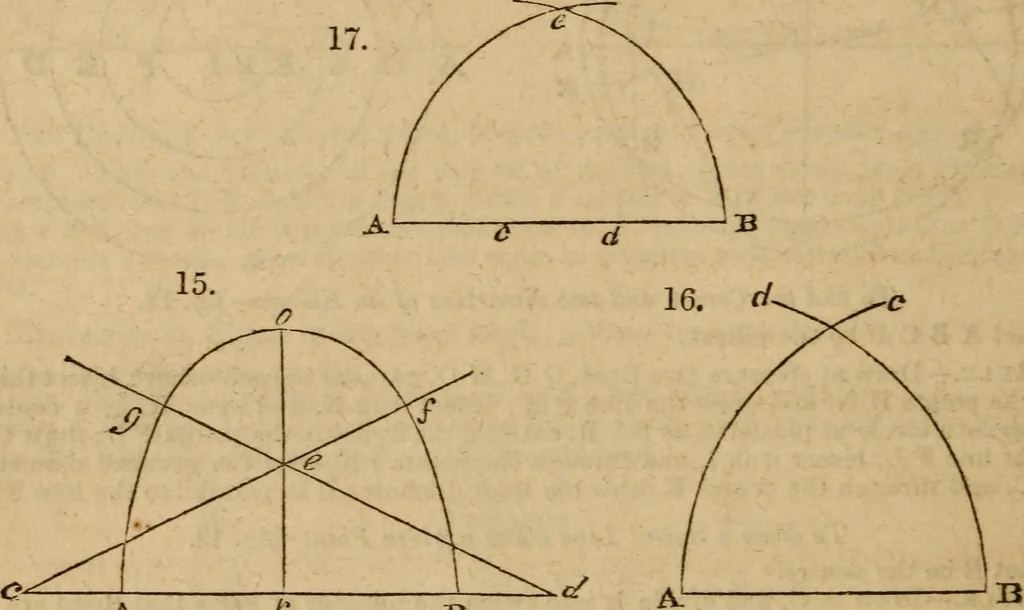

the radius thereof. Take the point H for the cen-tre of another circle, and H B for the radius ; this circle will contain the hne A B sixtimes. From the point 7, with the radius 7 B, a circle drawn will contain A B seventimes. From the point H, with the interval H 2, describe the arc 2 8 ; and from… … To describe an Elliptic Arch on the Conjugate Diameter—Jig. 15. Rule.—Draw the diameter A B, and in the middle at k, erect the perpendiculark 0, equal to the height of the arch ; divide the perpendicular k o into two equal partsat e; continue the hne A B on both sides at pleasure, and from the…
