Haswell's engineers' and mechanics' pocket-book .. (1844)
Haswell, Chas. H. (Charles Haynes), 1809-1907 · New York, Harper & brothers · leaf 60

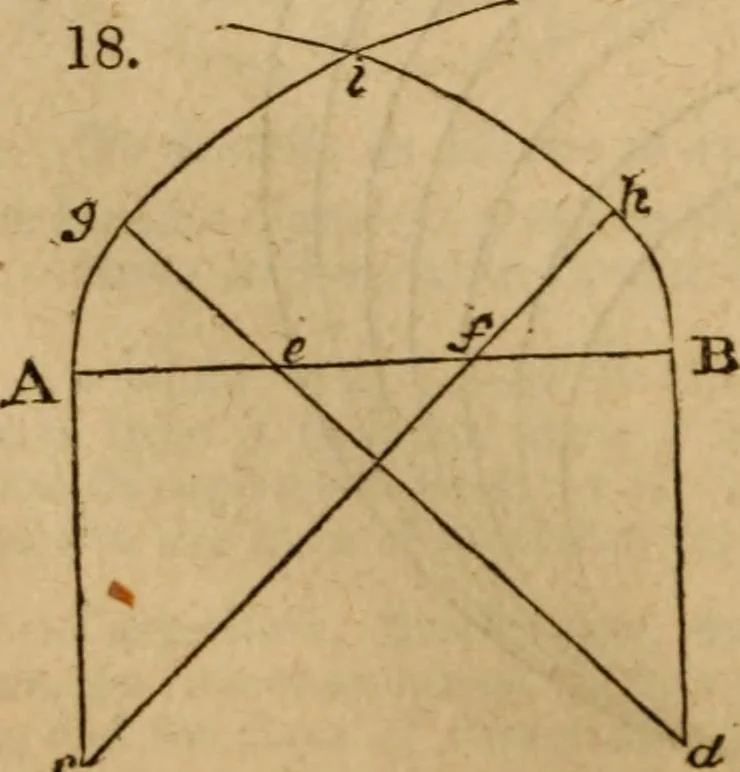

ine c and d; through c e, d e, draw c ej a.ndde g at pleasure ; dand c are centres for the arcs A g and B/, and e the centre for the arc g oj, whichwill form the arch required. To draw a Gothic Arch—Jig. 16. Rule 1.—Take the length of the line A B, and on the points A and B describe thearcs A c and…
