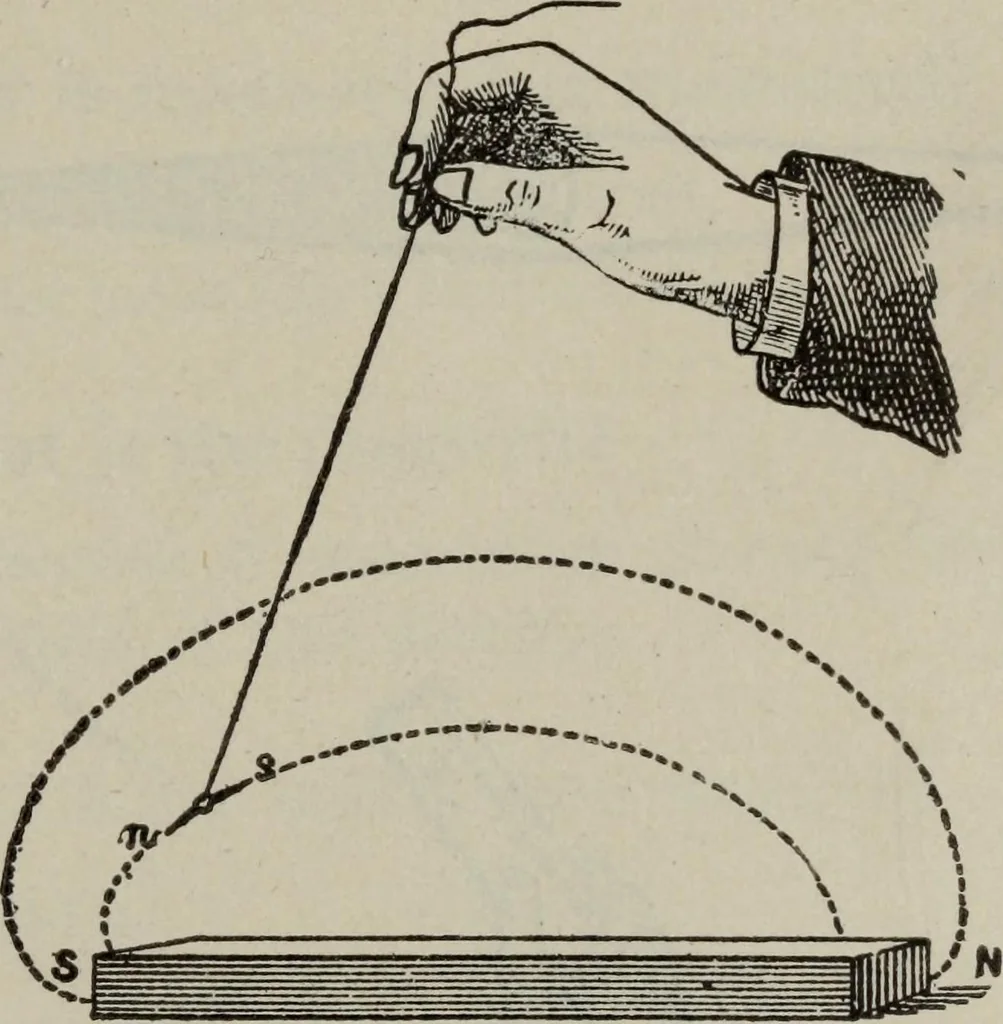

Fig. 108.—The region about a magnet in which its magnetic forces can be detected is calledthe magnetic field. This can be represented graphically by placing a piece of cardboardovei the magnet and sprinkling iron filings on the paper, gently tapping at the same time.Each filing becomes a temporary… … Fig. 109.—Tracing lines of force with a suspended magnet. If a small magnetic needle, sus-pended by a thread, be held near a magnet, it will point in some fixed direction dependingon the proximity of the poles of the magnet. The direction taken by the magnet is calledthe direction of the force at…
