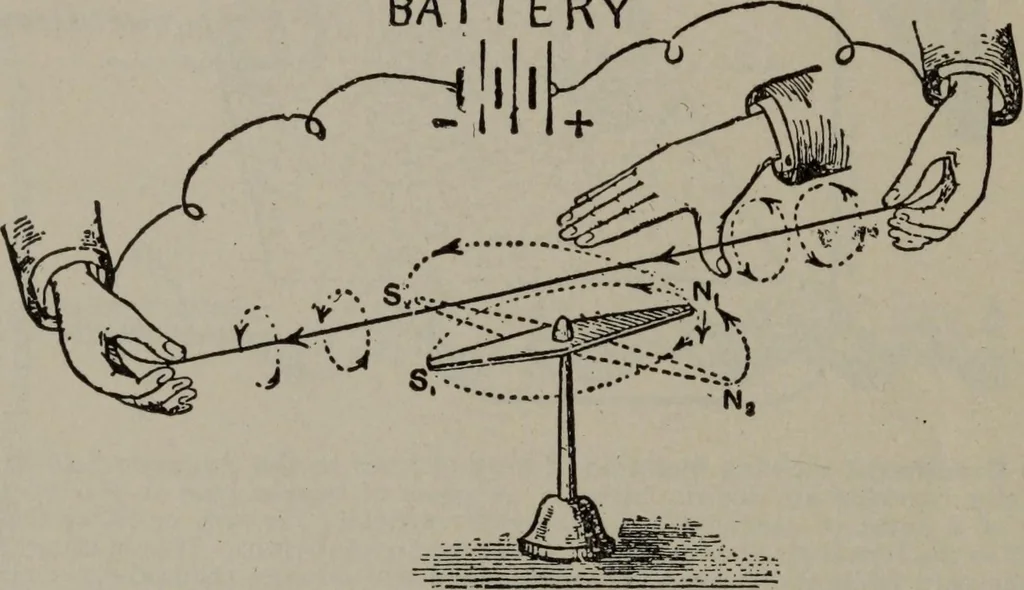

ed, asshown in the illustration, the finger tips will point in the direction of the magnetic whirls. 114 HAWKINS ELECTRICITY Ques. What is the effect of a current flowing in a loopof wire? Ans. If, in figs. 116 and 117, the current flow in the directionindicated by the arrow, the lines for magnetic… … FlG. 115.—Right hand palm rule to determine the direction of the magnetic field around aconductor carrying a current: Place the palm of the outstretched right hand above andto the right side of the wire with the ringers pointing in the direction of the current, andthe thumb extended at right…
