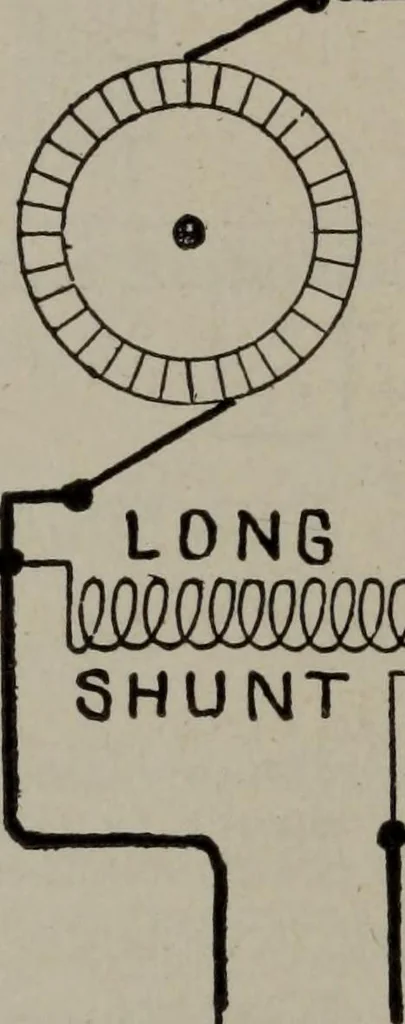

SHUNT SERIES ~> r MAIN CIRCUIT … WMwmwq mw SHUNT rg rsiRiES MAIN CIRGUIT Figs. 196 and 197.—Short and long shunt types of compound wound dynamos. The dis-tinction between the two is that the ends of the short shunt connect direct with the brushterminals, while in the long shunt type, fig. 197, one end of the shunt connects with…
