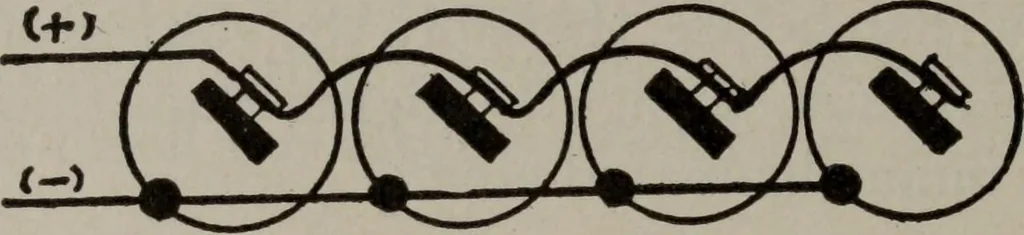

in joining the positive pole ofone cell to the negative pole of the other, as shown in fig. 72;this adds the voltage of each cell. Thus, connecting in series four cells of one and one-half volts eachwill give a total of six volts. 66 HAWKINS ELECTRICITY Fig 73 illustrates a parallel or multiple… … Fig. 73.—Diagram of a multiple or parallel connection. When connected in this manner thevoltage of the battery is the same as that of a single cell, but the current is equal to theamperage of a single cell multiplied by the number of cells. Thus with 1Y^ volt 15 amperedry cells, the combination or…
