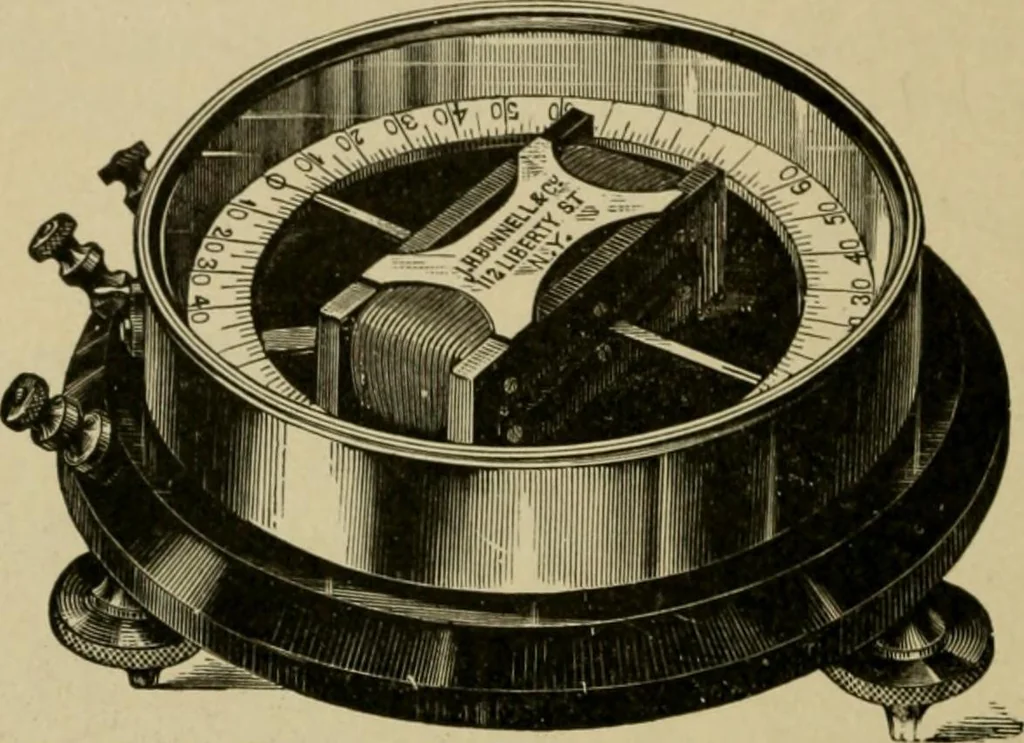

will be too large to give accurate meas-urements. In such cases the galvanometer is used with a shunt, or coil of wire arranged sothat the greater part of the current will flow through it, and only a small portion through thegalvanometer. 436 HAWKINS ELECTRICITY Oues. What is the difference between… … Fig. !)09.—Bunnell galvanometer for measurements of instruments, lines, batteries, wiresand any object from lij to 10,000 ohms or more. Oues. What is the action of short and long coil gal-vanometers? Ans. With a given current, the total magnetizing force whichdeflects the needle is the same, but…
