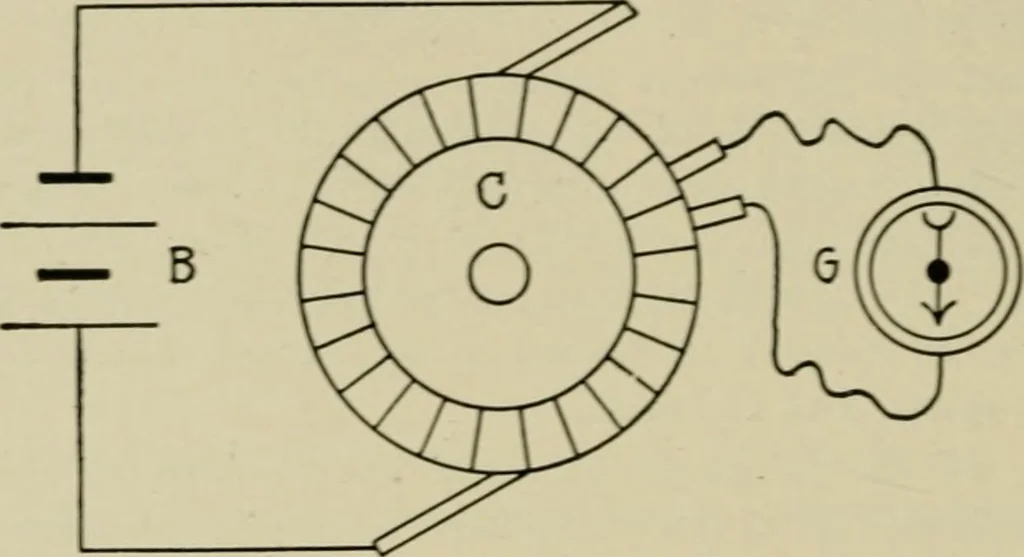

AWKIXS ELECTRICITY Short Circuit in Individual Coils.—This is a commonfault, which makes its presence known by a \-iolent heating ofthe armature, flashing at the commutator, flickering of the lighton hghting circuits, and by a smell of burning varnish or over-heated insulation. When these… … FiG. 700.—Method of lofaringsh<»tcircaitedannatnrecwL Disooooect the external and fieldcircnits from the annatore.and pass a laige cnneat—say bom 20 to 100 amperes—from abattery (B> or srnnttwr- dynamo throng the wh<^ aimatme by means of the bntdies.Then, having prevkmsty well cleaned the…
