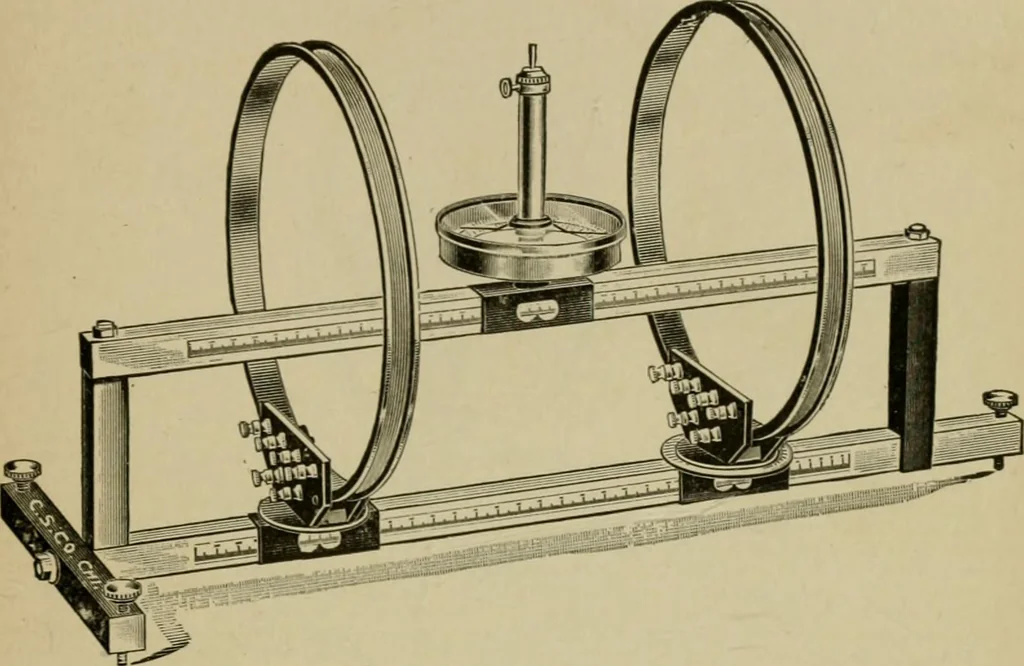

needle, and hencefar away from it, reduces the sensitiveness of the instrument. GALVANOMETERS 449 The Sine Galvanometer.—This type of instrument has avertical coil which may be rotated around a vertical axis, so thatit can be made to follow the magnetic needle in its deflections. In the sine… … Fig. 523.—Central Scientific Co. universal tangent galvanometer. This instrument may beused as a tangent, Gaugain, Helmholtz-Gaugain, sine, cosine, Wiedemann or detectorgalvanometer. The coils, which slide on a beam parallel to the one carrying the needle box,are wound on brass rings 12 inches in…
