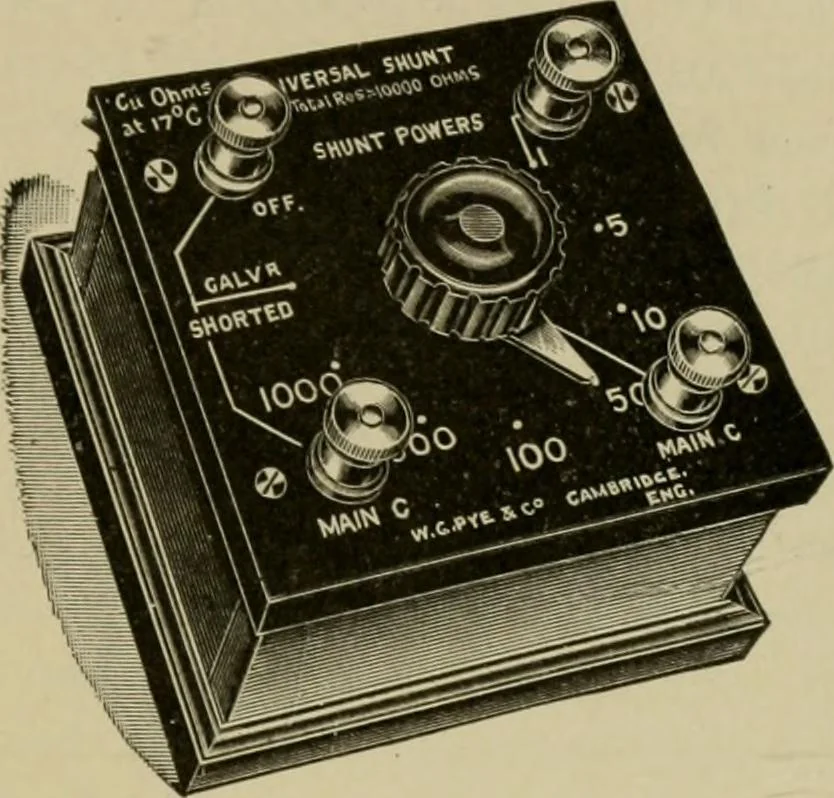

ns of plugs or by a dial switch. GALVANOMETERS 463 measured directly by the galvanometer, a part of the currentcan be sent through the resistance or shunt, and the total valueof the current calculated. A galvanometer shunt bears a definite ratio to the resistanceof the galvanometer, being usually… … Pig. 539.—Ayrton-Mather universal shunt. This shunt may be used with any galvanometer.The total resistance is 10,000 ohms, with shunt powers of 1, 5, 10, 50, 100, 500, and l.OOo!It is also fitted with positions in which the galvanometer is shorted and off. The coilsare of constantan wire. If .1 of…
