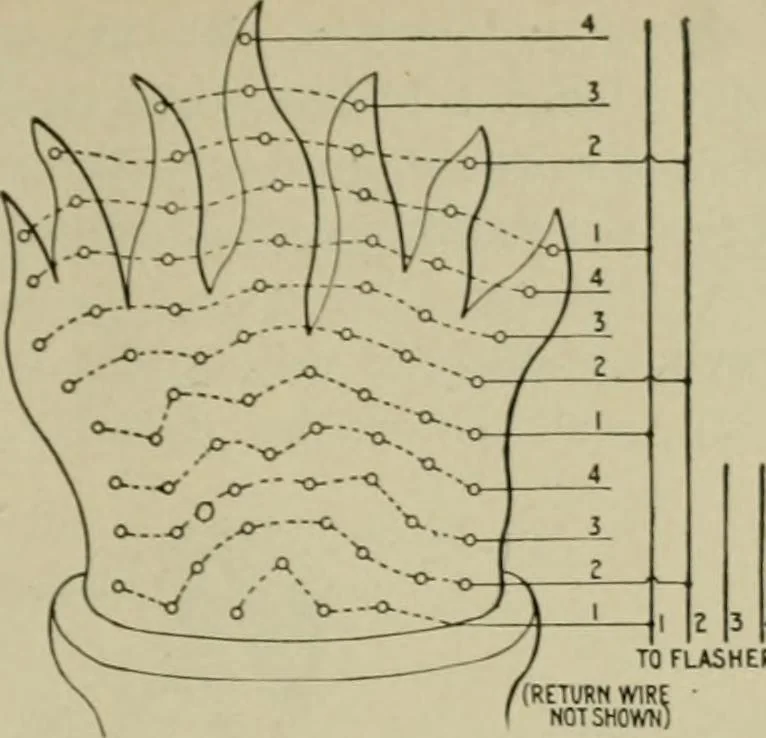

ne, and the effect willcome out right. For instance, in a flame effect with sixteen No. 1 lamps, four No. I lampscould be taken in the straight border, and put on the same wire, and the effect wouldcome out right. The spacings for high speed effects vary, according to the size of thesign.… … . 1.022.—Method of wiring for a torch. This wiring diagram gives the correct methodof wiring smoke, flames, steam, and water effects. It may be the flame in the top of atorch as here shown, liquid pouring out of a bottle, smoke rising from a cigar, or dustbehind an automobile wheel. The only…
