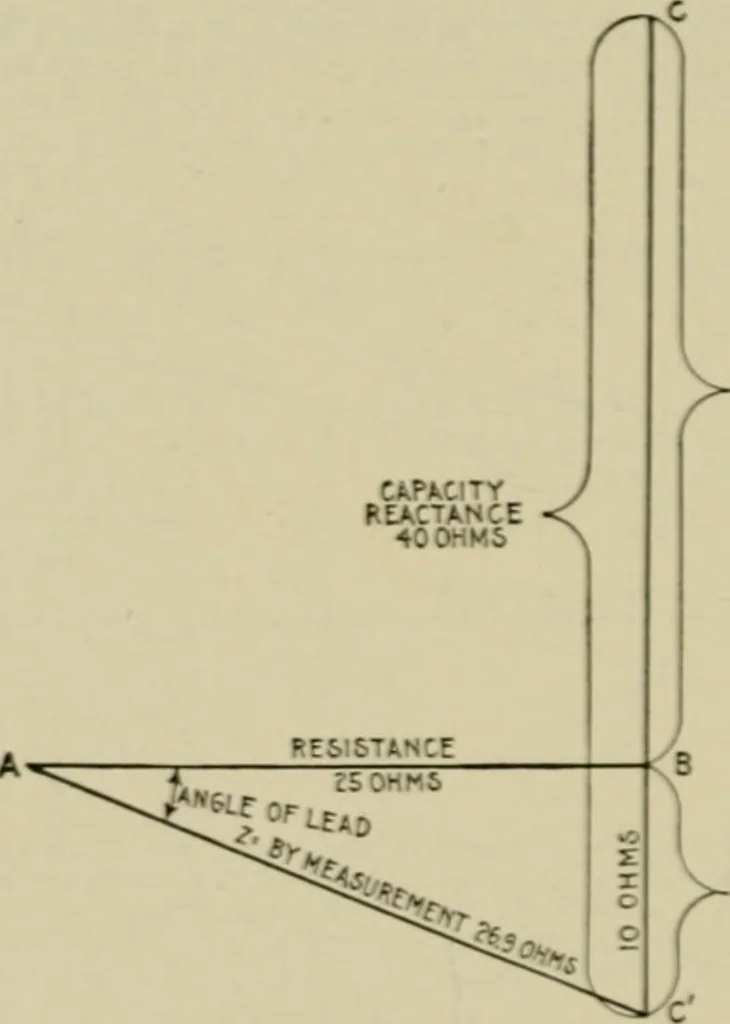

s is expressed plainer in the form of an eqtmtion as follows:impedance = y resistance2-\-(inductance reactance — capacity reactance)2or, using symbols, Z = VR2+(Xf-Xc)2 (1) IIAWKIXS ELECTRICITY Ques. If the capacity reactance be larger than theinductance reactance, how does this affect the sign of… … / i: : PlG. 1.337.—Impedance diagram of a circuit containing 25 ohms resistance, 30ohms inductance,and 40 ohms capacity. The resultant reactance being due to excess of capaci-impedance line AC falls below the horizontal line AB, indicating that the currer.-.pressure. EXAMPLE. — What is the…
