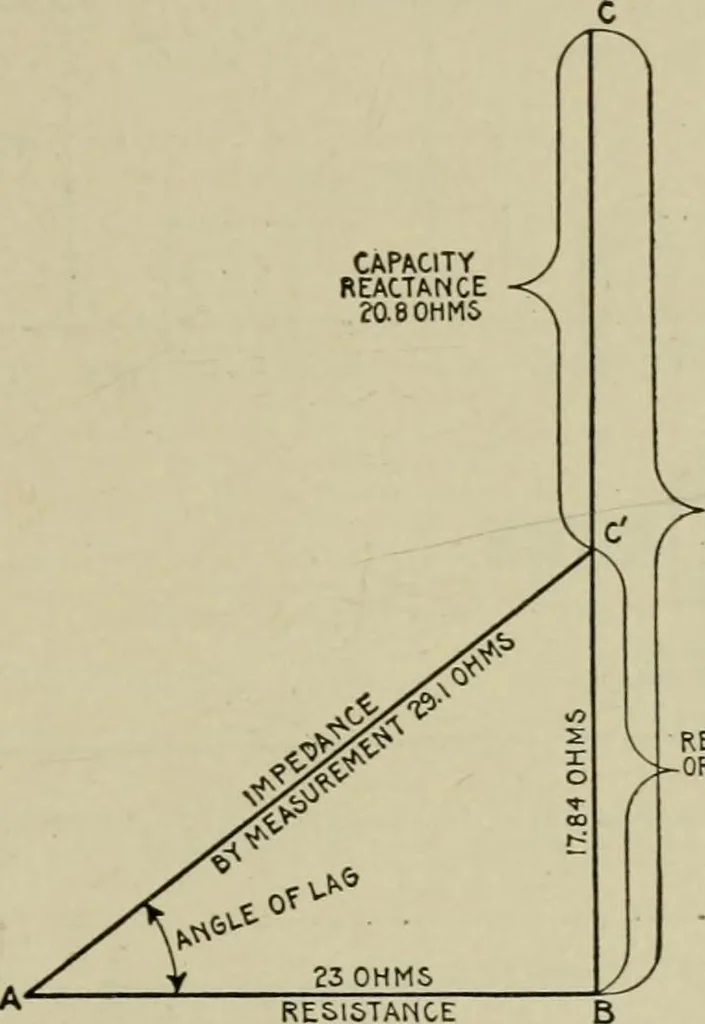

off downward CC = 20.8 ohms capacityreactance. The resultant reactance ALTERNATING CURRENT DIAGRAMS 1,097 is BC and being above the horizontal line AB shows that inductancereactance is in excess of capacity reactance by the amount BC. JoinAC which gives the impedance sought, and which by… … INDUCTANCr REACTANCE C / 3664OHMS V RESULTANT REACTANCEV -OR EXCESS OF INDUCTANCE/ 17.84 OHMS RESISTANCE Fig. 1,340.—Impedance diagram for the circuit shown in fig. 1,339. Note that the resultantreactance being due to excess of inductance, the impedance line AC falls above the hori-zontal line AB.…
