Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 256

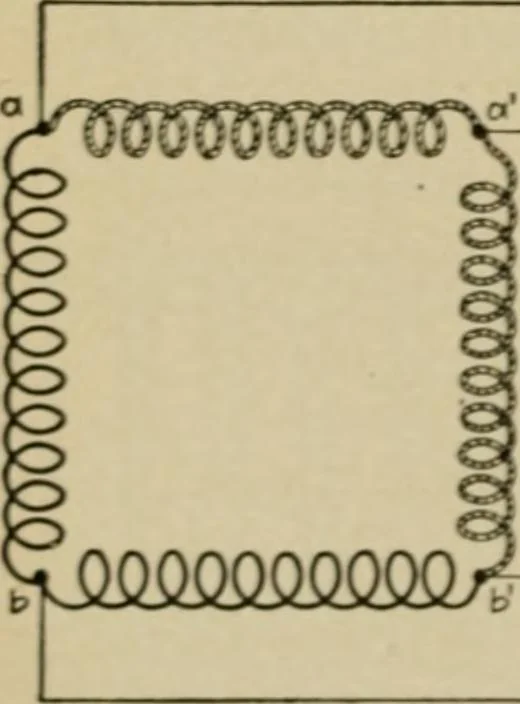

PHASE A PHASE B Fig. 1.544.—Diagram of two phase star gr. Ques. What does this arrangement give? An practically equivalent to a four phase system. PHASE A … PHASE B I 545.—Diagram of two phase mesh grouping. Ques. How is the two phase mesh connection arranged ? Ans. In this style of grouping, the two phases are divided CONSTR UCTION OF AL TERN A TORS 1,245 into two parts, and the four parts are connected up in cyclicorder, the end of one to the…
Electrical engineering
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
