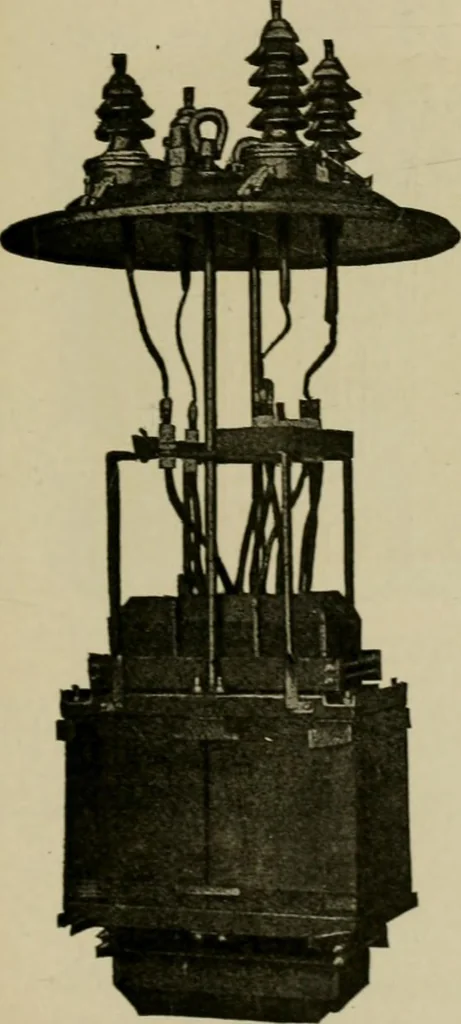

tion atfull load. Transformer Losses.—As previously mentioned, the ratiobetween the applied primaryvoltage and the secondary ter-minal voltage of a transformeris not always equal to the ratioof primary to secondary turnsof wire around the core. The commercial transformeris not a perfect converter… … Fig. 1.938.—Interior of General Electric oilcooled 500 kva. 33,000 volt outdoor trans-former showing lifting arrangement. 1,386 HAWKINS ELECTRICITY difference between the input and the output is equal to the sumof these losses. They are divided into two classes: 1. The iron or core losses; 2. The…
