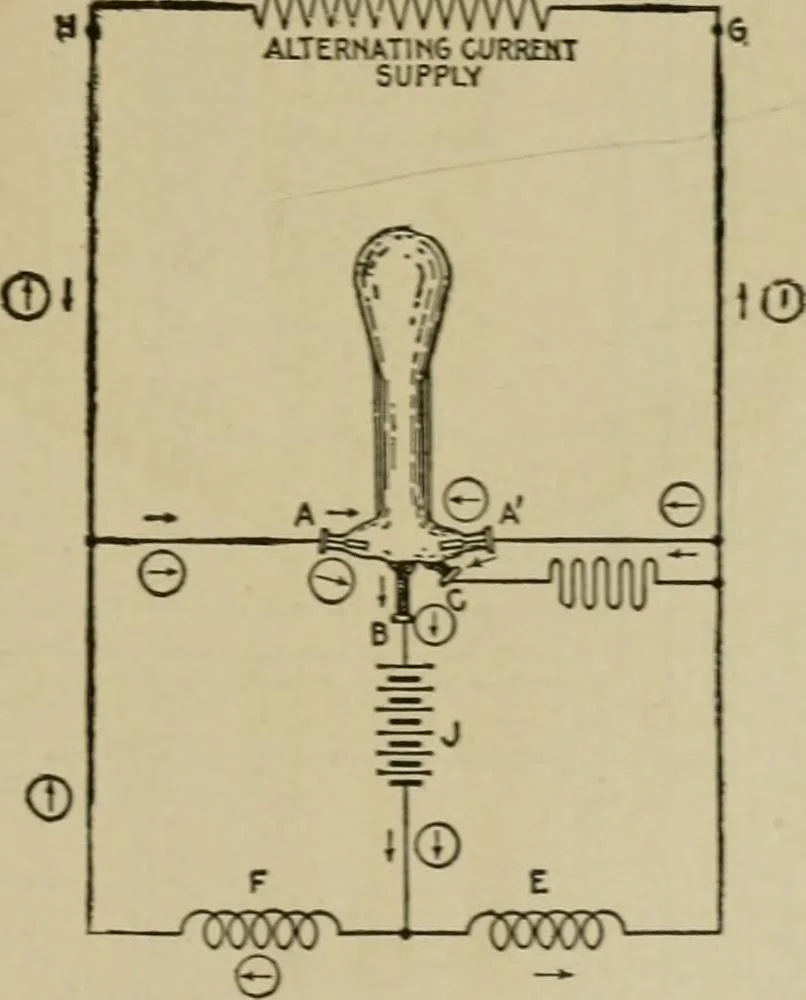

the drip from the tube tanks is usually piped to theboiler supply thereby eliminating any Iqss for cooling water. RECTIFIERS 1.517 Ques. Describe the construction and operation of themercury arc* rectifier shown in fig. 2,108. Arts. Fig. 2,108 is an elementary diagram of connections.The rectifier… … Fig. 2.10S.—Elementary diagram of mercury arc rectifier connections. A.A.. graphite anodes;B. mercury cathode; C, small starting electrode; D, battery connection; E and F, reactancecoils, G and H, transformer terminals; J. bat:^ circuit, through resistance; and by rocking the tube a slight arcis…
