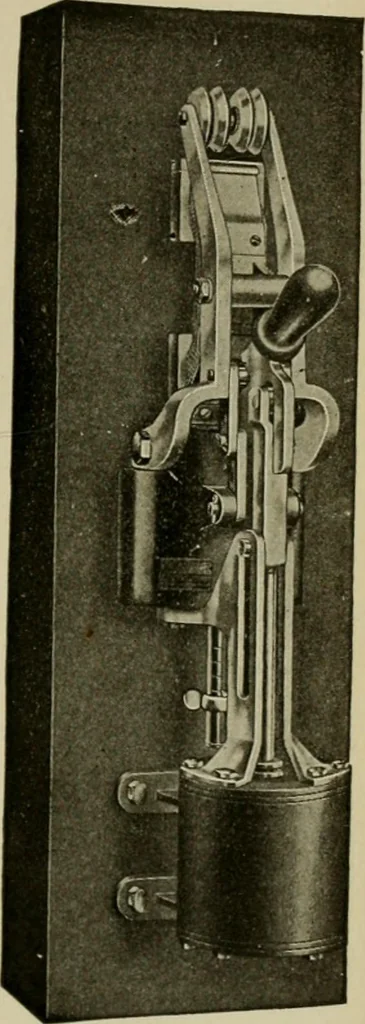

s operatedby an inverse time limit relay. The relay is connected to the second-aries of current transformers, which inturn are connected in the low voltage sideof the power transformer. .Stations with more than one bank ofpower transformers, a high voltage bus,and high and low voltage circuit… … FlG. 2,331.—Condit 600 volt,1,500 ampere, single pole typeK circuit breaker pneumati-cally operated. Itisthesameasthe electrically operated circuitbreaker, except that a pneu-matic cylinder mechanism issupplied in place of either theelectromagnet or the motor.This cylinder mechanism is so arranged…
