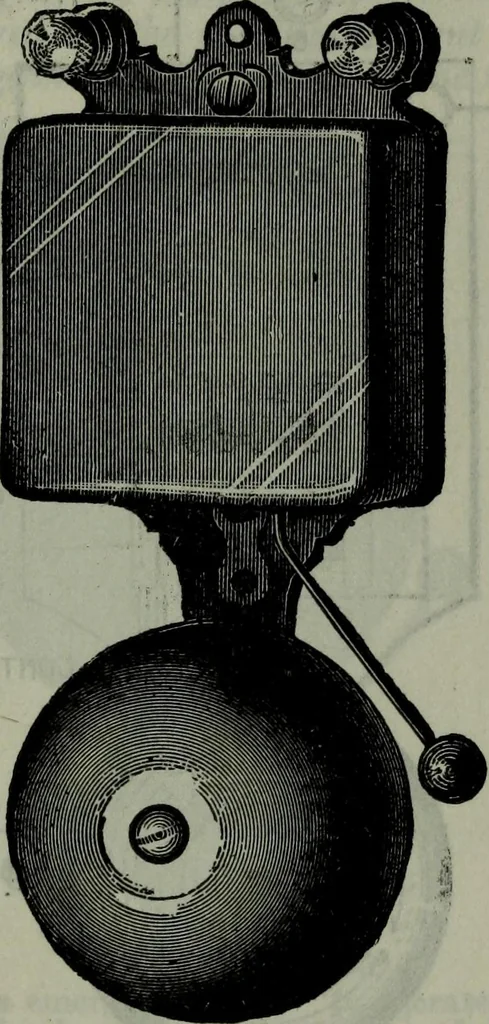

form of bellthe current, during operation, is not broken, but as the magnet ELECTRIC BELLS 2,347 attracts the armature, the current is shunted or short circuited,and thus being offered a path of very little resistance as com-pared with that of the magnet winding, most of the currentflows through… … Fig. 3,206.—Bunnell iron box bell. # The protection thus secured excludes dust and protectsthe working parts from injury in exposed places. The armature is pivoted and has ad-justable contacts. The resistance of the winding is 4 to 5 ohms. Ones. Name the essential parts of a shunt bell. Ans. 1, An…
