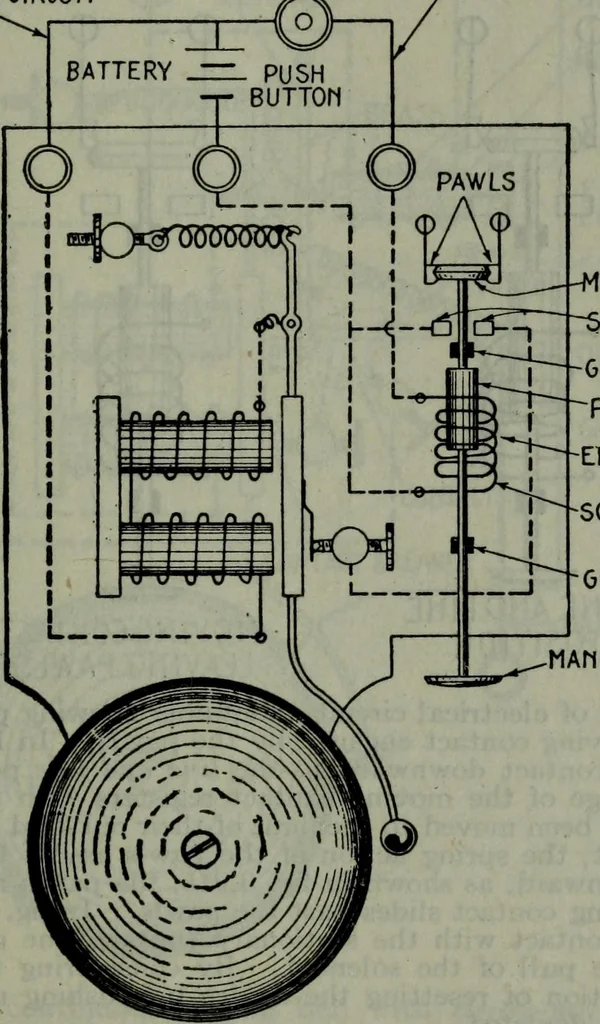

h-man is not attending to his duty. ELECTRIC BELLS 2,353 Ques. Describe the operation of a continuous ringingbell with an electrical circuit maintainer. Ans. The essential parts are shown in fig. 3,212. In opera-tion, when the starting circuit is closed by depressing the pushbutton, current flows… … OVING CONTACT t ^STATIONARY CONTACTS GUIDE PLUNGER ELECTRICAL CIRCUITMAINTAINER SOLENOIDGUIDE MANUAL CONTROL BUTTON Fig. 3,212.—Elementary continuous ringing bell with electrical circuit maintainer. It con-sists of an ordinary vibrating bell fitted with a solenoid operated switch which remainsin…
