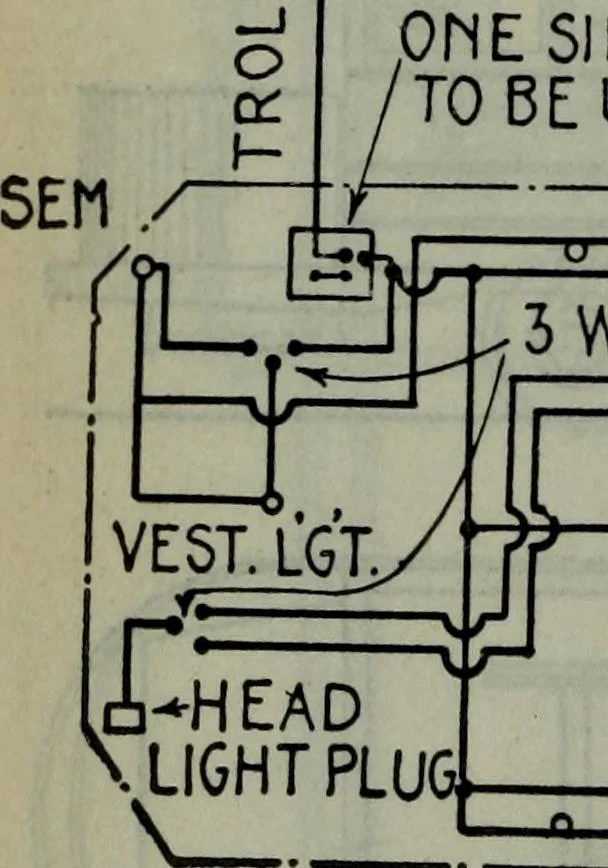

ent, the arrangement and power of the lamps dependingupon the size of the car and the character of the service. In-candescent lamps are used almost universally for both interior il-lumination and for headlights. Cars of ordinary size usually havea cluster of three lamps in the center of the ceiling… … ,0ME SIDE OF HEATER SWITCHTO BE USED FOR LIGHTS 3 WAY SWITCH TO BE PLACEDOVERHEAD AT FRONT OF VESTIBULE3 WAY SWITCH 3 WAY SWITCH ZZl CEILING LIGHTS RESISTANCE- PLUG r X / Pig 3 WAYGROUND^ SWTCH 3,671.—Car lighting wiring diagram showing head light in series with interior lamps.In this case there…
