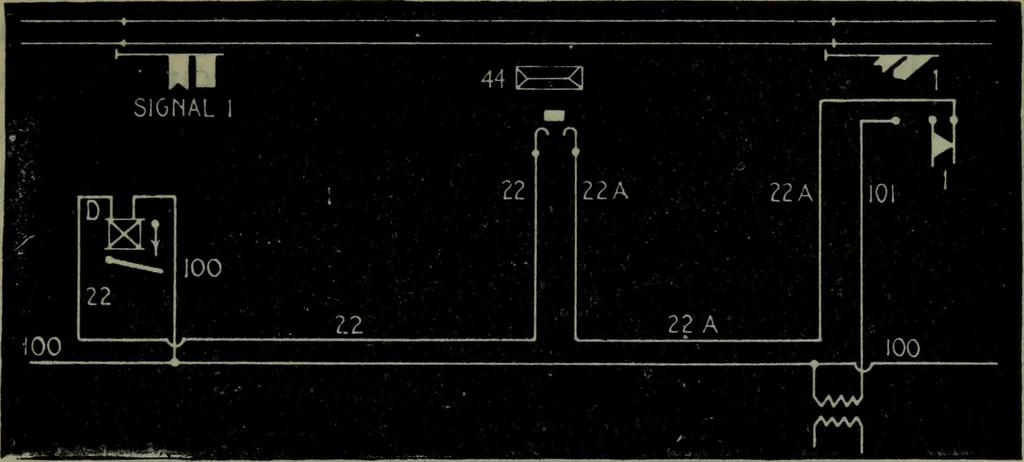

net L. De-energized armatureL-l causes contact finger I -2 to make contact with M bell circuit closed; fig, 3,736, train intrack circuit A B and B C (at crossing) relay magnet R de-energized contact finger R-2resting on L-2 bell circuit closed; fig. 3,737, train in track circuit B C relay magnet… … Fig. 3,738.—Advanced block distant signal circuit. In operation when the towerman pulls alever numbered the same as the distant signal he desires to operate, he completes a circuitbetween the two springs which causes the distant signal blade to clear.
