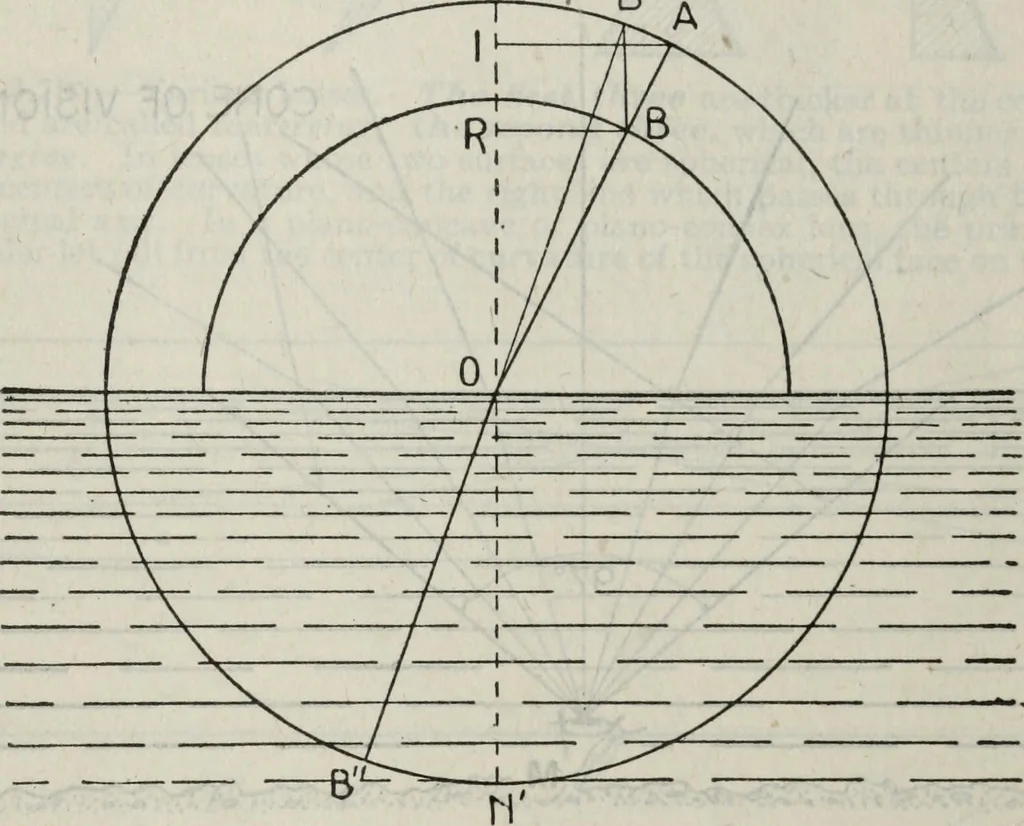

r appearsbent, the immersed part appearing raised. Owing to refraction stars are visible even whenthey are below the horizon. MOTION PICTURES 2,683 that n sin BOG = 1, from which, sin BOG = l~/x. This angleBOG is the critical angle. The critical angle varies with the nature of the substance: thus,… … Fig 3,776.—Construction of refracted ray. Let AO be a ray of light passing through air andentering water at O. The index is f. Draw two circles with centers at O and with radiiwhose lengths are as 4 : 3. Draw AI and BR perpendicular to the normal NN. Since AO :BO =4:3, then AI : BR =4:3. Hence if…
