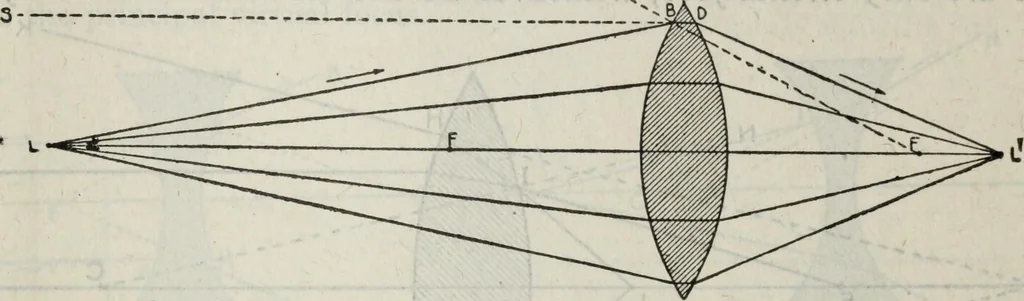

istance FA, the principal focal distance. Fig. 3,788 shows the case in which the luminous source is outsidethe principal focus, but so near that all incident rays form a divergentpencil. MOTION PICTURES 2,687 Virtual Foci.—A double convex lens has a virtual focus when theluminous object is placed… … Fig. 3,788.—Principal focus in double curve lenses. CASE II: Divergent rays from luminoussource. In the figure the luminous source being at L, by comparing the path of a divergingray LB, with that of a ray, SB, parallel to the axis, the former is found to make with thenormal, an angle LBN, greater…
