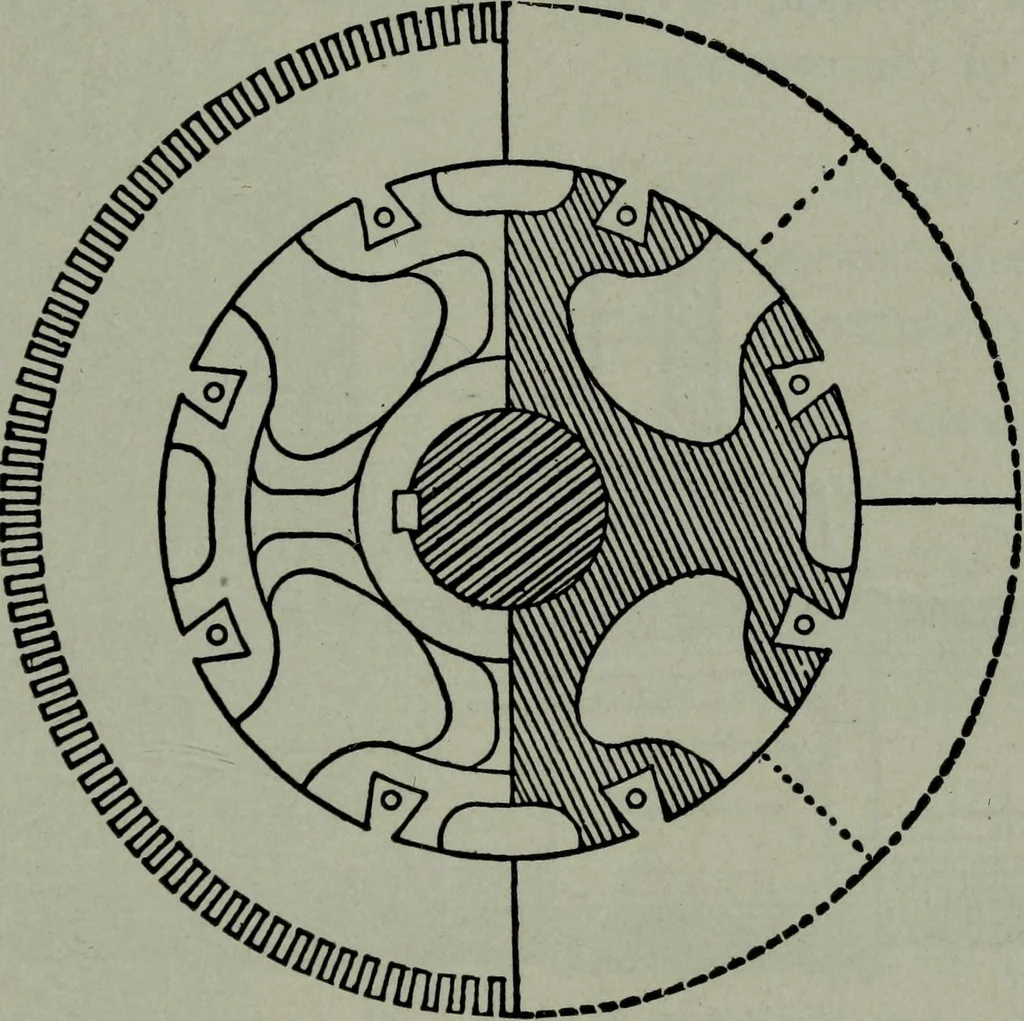

rt or spider, which consists of an iron hub ARMATURE CONSTRUCTION 331 with radiating spokes and a rim with provision for fasteningthe rings. The rim of the spider is provided with dovetailnotches into which fit similarly shaped internal projections on thecore segments. These features are shown in… … Fig. 364.—Built up core with four spoke spider, each spoke carrying two dovetail notchesIn this construction a little more air space is obtained for ventilation than where a separatespoke is provided for each notch. spider is an important point, for it must be done without reducingthe effective…
