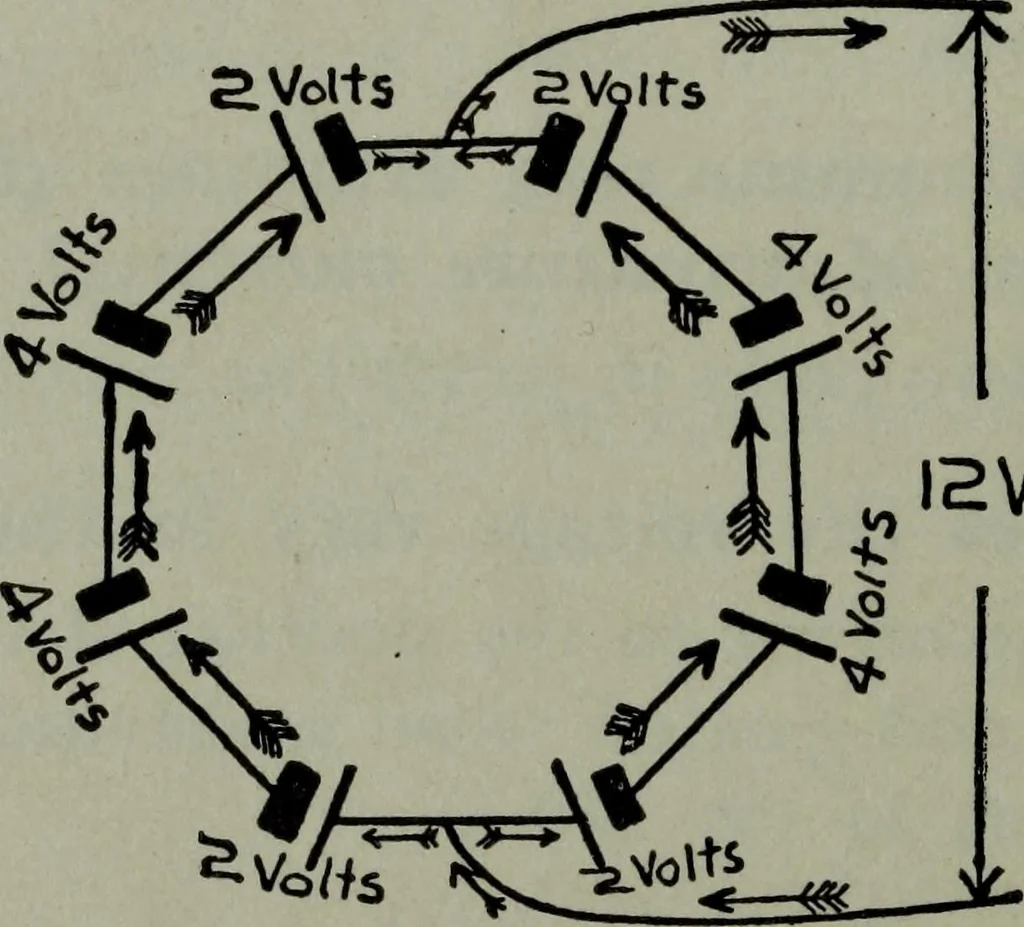

Fig. 279.—Current distribution in a gramme ring armature. There are two paths for th*current between the brushes, half going up each side of the ring as indicated by the arrows,thus giving two paths in parallel as indicated in fig. 281. … lavoifc PlG. 280.—Battery analogy illustrating current distribution in a ring armature. The eightcoils of the armature, fig. 279, are represented by two batteries of four cells each. _ Theaction of the two units thus connected is indicated by the arrows. In the external circuitthe voltage is equal…
