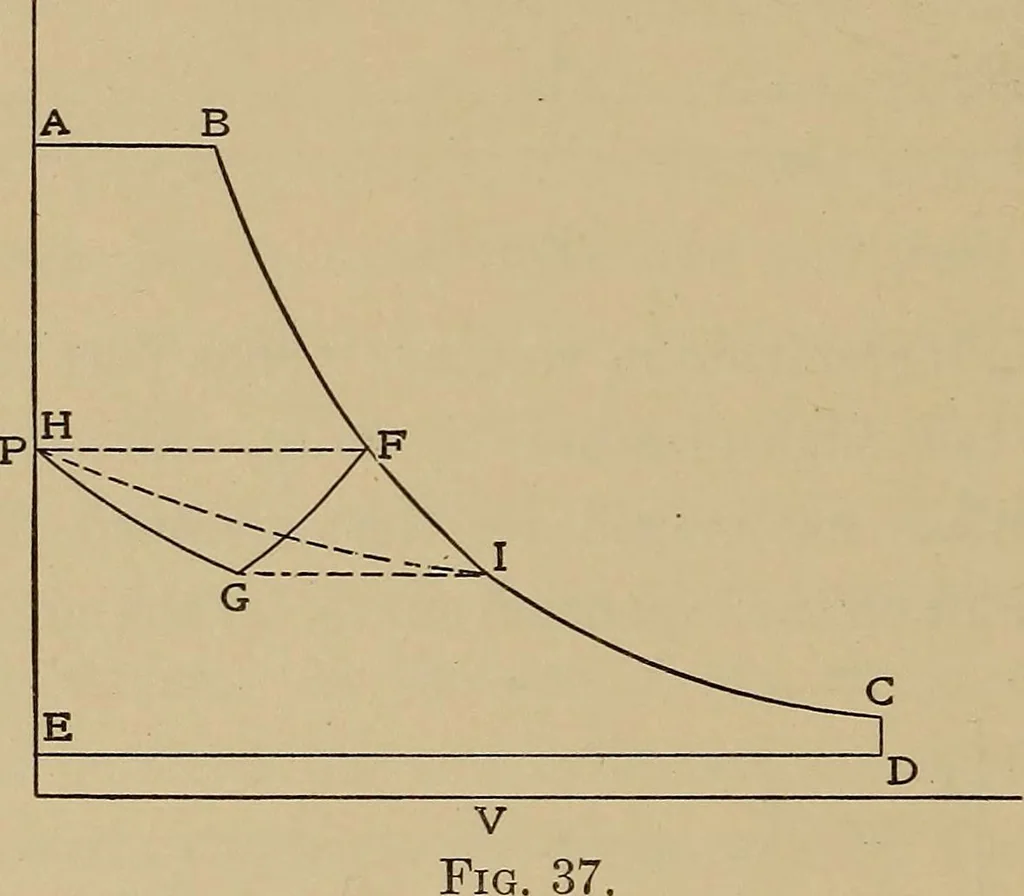

CF is determined. Thisgives, then, for the equivalent indicator diagram, for the twocylinders, the diagram ABCFGH. 143. Tandem Compound and Small Receiver. Since it isimpracticable to have a receiver of sufficient volume, so that thepressure in it is constant throughout the cycle, the cut-off, for… … Let, in Fig. 37, ABODE be the combined diagram, constructedas described in Art. 142; AB represents the admission to the smallcylinder, BC the total expansion, CD the drop, during release,in the large cylinder, and DE the final exhaust. Let, now, F be the point of release for the small cylinder,…
