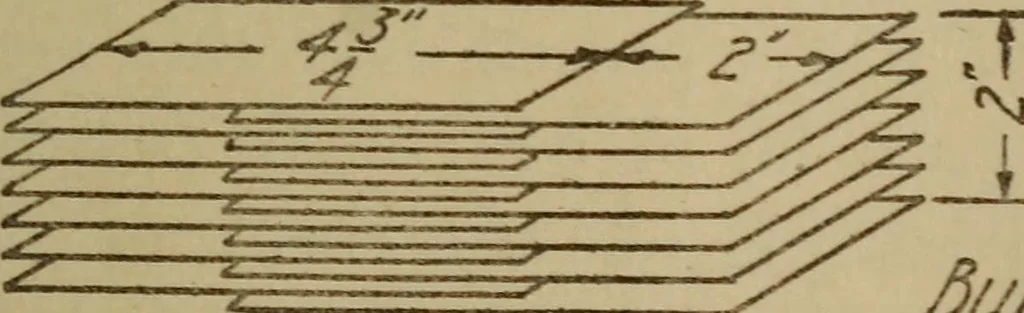

^1 ^ Fig. 44.—Core of transformer with dimensions compress the sheets into a compact bundle. If the sheetsare clamped in a vise and the tape wrapped around the pro-jecting end, the core may be tightly bound as the bundleis released an inch at a time. After the two bundles have been formed, they may… … Core /ron6 250 PC^, 2x4f250 PCS. 2^7f 3u/7cf (/jo 2 of f/7ese Fig. 45.—Short leg of core upon which winding is placed Primary Winding.—Fig. 46 gives the data for the pri-mary winding to use for any of the commercial frequencies. 102 HIGH FREQUENCY APPARATUS The core is so generously proportioned…
