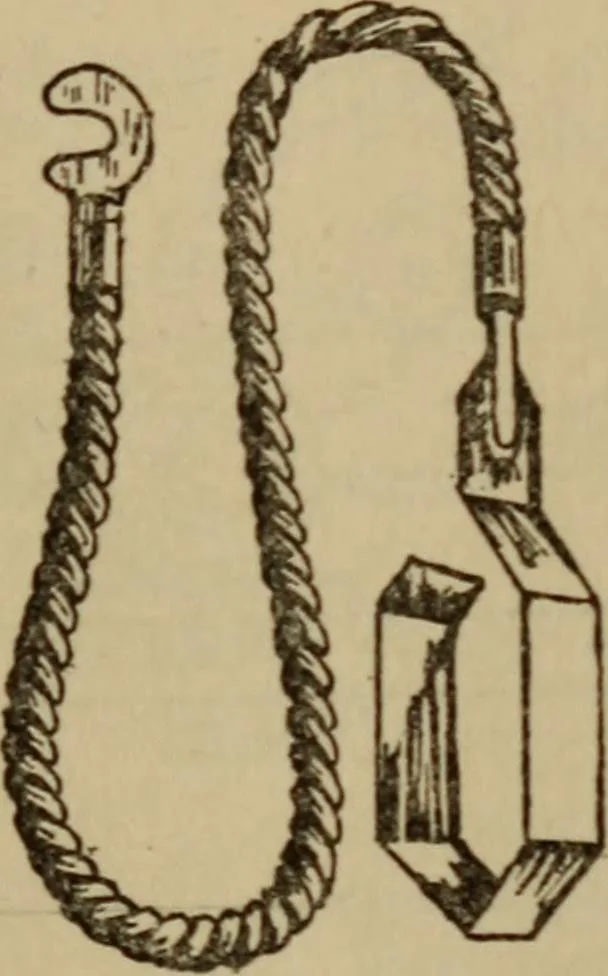

ood nailed to the base and cover. A bar of J/g-inchby 1 inch copper runs across from one end piece to theother on either side and affords a means of connecting themany plates in multiple. This connection is accomplishedby means of the special contact leads shown in Fig. 105.These leads are merely… … Fig. 105.—Spring connector and cord for condenser connection between both plates of tinfoil when the springis inserted. In making the connections to the bars on either side,the contacts are alternated in order that the plates may allbe in multiple. That is, referring to Fig. 104, in starting…
