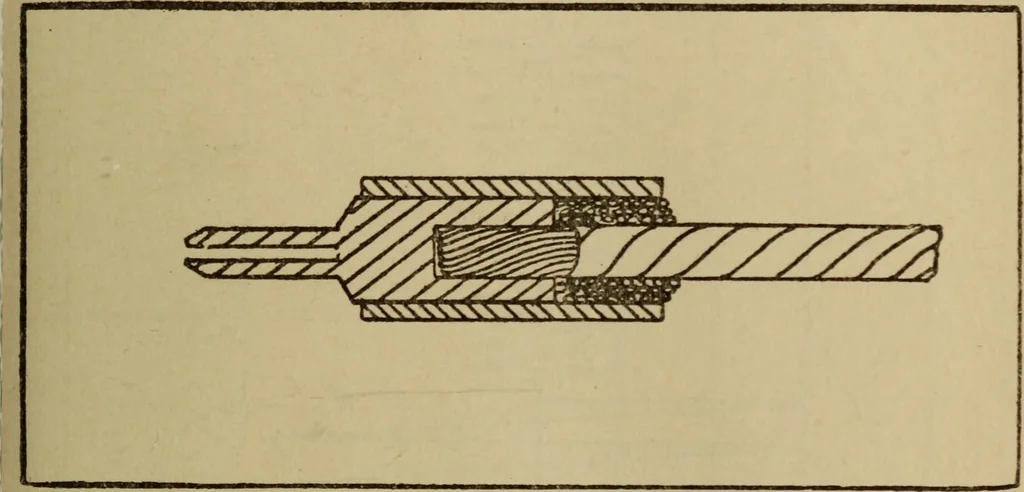

feet long and tipped on each end w^itha special lug or connector. The construction of the con-nector or clip which makes contact with the primary rib-bon is clearly shown in Fig. 122. The clip is made by cut-ting a slit in the end of a piece of hard brass rod ^ inch indiameter by means of a thin… … Fig. 122.—Clip which makes connection with primary turns the latter is carefully cleaned of its insulation for a dis-tance of Yz inch and the bare ends of the wire are thentwisted together after having been well coated with a goodsoldering paste. The clip is held in a pair of pliers andcarefully…
