High frequency apparatus, design, construction and practical application; a practical treatise for electrical engineers, electricans, physicians, students and experimenters (1920)
Curtis, Thomas Stanley · New York, Norman W. Henley publishing company · leaf 240

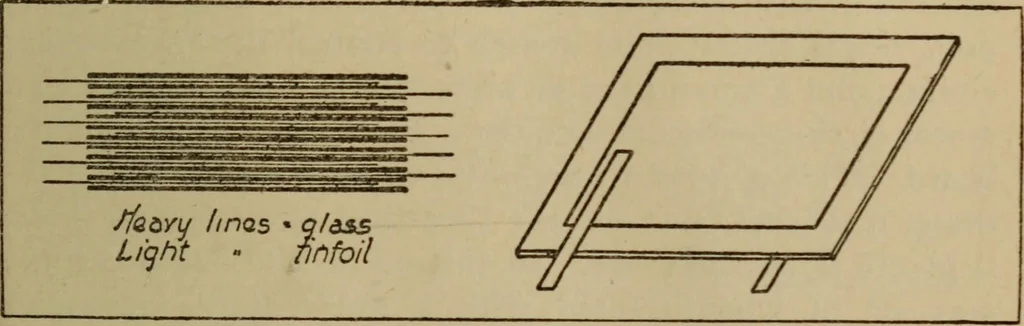

far enough to cover the edges of the foil for a space of aninch or so to prevent brush leakage. The lugs are of thin copper ribbon, tinned at one endand affixed electrically to the tinfoil at alternate ends onboth sheets of foil with a deft application of the solderingcopper. A little practice on a… … I Fig. 133.—Single plate of the condenser coated on both sides with tin foil I also the way in which ten plates are piled one on top of the] other to form a complete unit. This assembling having been done with the entire lot-of plates, the projecting lugsi may be clamped with the pliers and…
