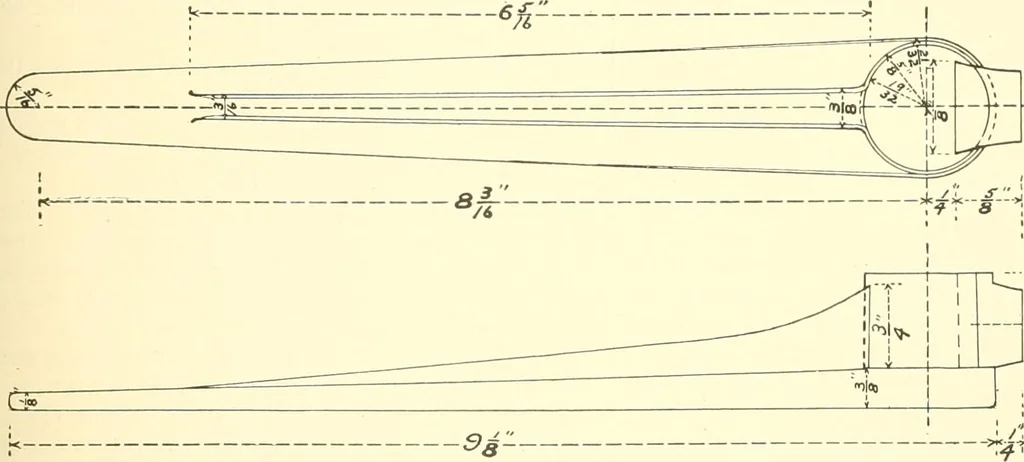

rs by means of a gouge, heatetlin warm water. Shifting Fork with Movable Boss (Fig. 325) This pattern, with the movable boss, may be rammedup on its flat back in the drag. Without the bossmovable it would have to be rammed up on its side andcoped down to the web. Use fillets in the corners at the… … --S<o— - -K ■ 1 (^ 11 !, X- _J vU i 1 176 PATTERN JIAKING If the boss (the extra round bit of metal, cast on theentl of the fork and tapped for the set screw) weretight, the pattern would have to be rammed up on itsside, and the sand lifted away carefully, half way downthe pattern, as shown in…
