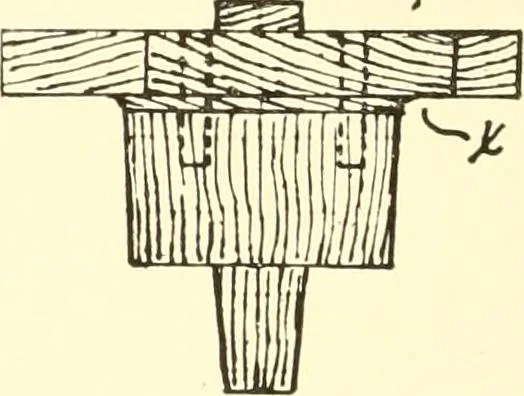

In making a pattern for a pulley (Fig. 347) hexagonalsegments are used to build up the rim, and the segments are so arranged that the joints in one layer are coveredand strengthened by having the segments of the nextlayer directly over the joint. In gluing up the stock to make the face-plate… … Fig. 348 The hub of the pattern and the core-print are turnedfrom wood with the grain running the other way. Theface made of segments should be fastened to the hubwith two dowels and well glued. The pattern is best turned between centers on thelathe, a small block being glued to the face to take…
