High school manual training course in woodwork, including cost of equipment and supplies and studies on trees and wood (1905)
Ritchey, Samuel Edward, 1866- · New York, American Book Company · leaf 78

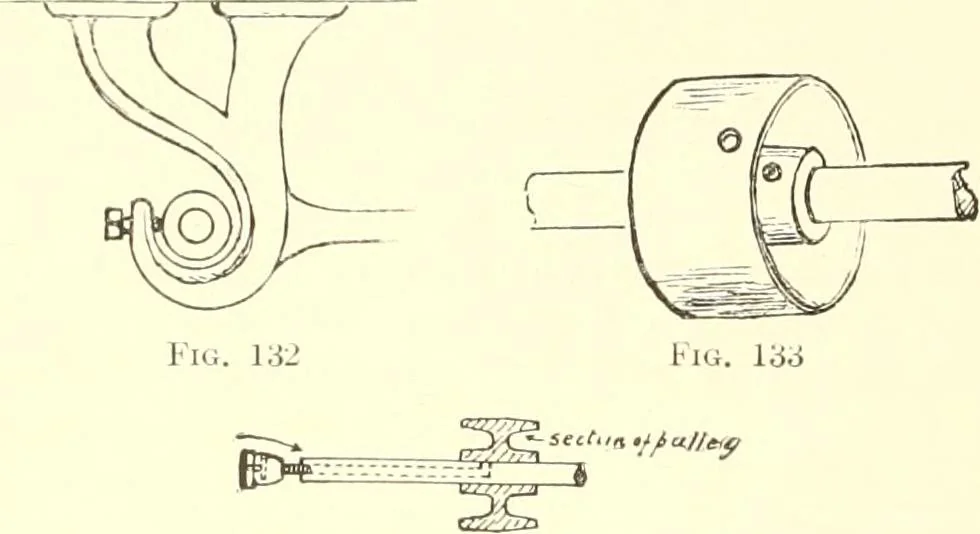

he counter cone is about 12 ins.,and the countershaft runs 500 revolutions a minute.The smallest diameter of jour head-stock cone on lathe Tool Case 14 Fig. 130 is about 2 ins. How fast will your lathe run if the beltis on the largest and smallest steps of these cones? JC, WOOD TURNING Each lianger… … belt, there are fastened to the shifting rod two shiftingforks, coming down on either side of the belt, also twostop collars, to limit the motion of the rod when movedby the shifting lever. Oiling the Loose Pulley The loose pulley, running on your countershaft, mustbe oiled frequently, or it will…
Woodwork (Manual training) · Cabinetwork
