The history and principles of weaving by hand and by power : reprinted, with considerable additions, from "Engineering," with a chapter on lace-making machinery, reprinted from the "Journal of the Society of Arts" (1878)
Barlow, Alfred · London : S. Low, Marston, Searle, & Rivington ; Philadelphia : H. Carey Baird · leaf 118

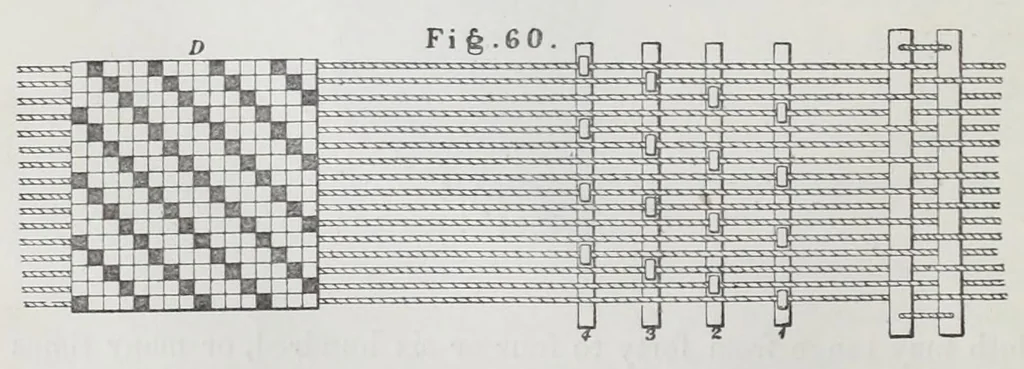

d, and it may be seen which of the headles has been employed at each intersection of the weft thread. Thus the numbers 1, 2, 3, 4 on the weft threads correspond to the number of the headle which has been used when the weft was inserted. The lease or cross is shown at 'N, but the reed has been… … appear on design paper, the cloth as shown at G, Fig. 59. A section of Fig. 59 is shown at Fig. 61 .
Weaving · Hand weaving · Lace and lace making
