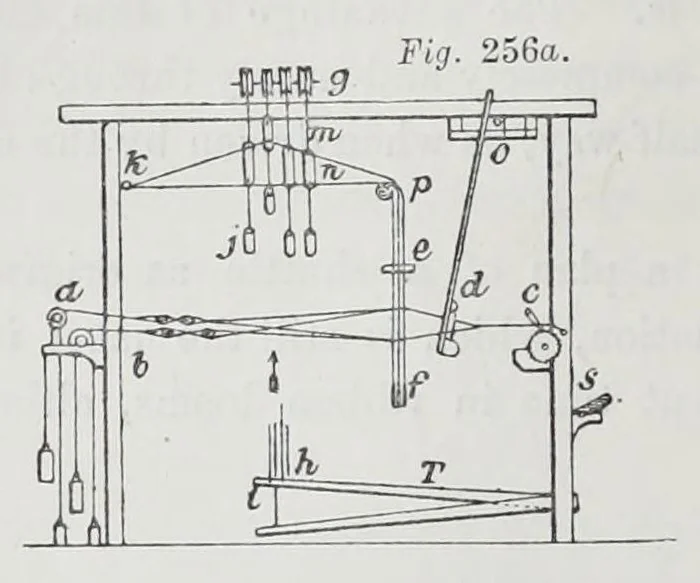

HI ST OR Y OF WE A VING. 228 Fig. 256a shows a section of the loom, in which a and b represent two warps and beams which are being woven. The reed is shown at d, and c is the cloth beam, s the seat, and T the treadles. So far the loom is similar to the ordinary hand loom. … On the top of the loom a number of pulleys g are placed on each side. In this instance eight are used, or four on each side; but twenty and upwards can be used. Each pulley has a corresponding treadle T, and a cord h is attached to each treadle and carried over a pulley, terminating with a weight…
