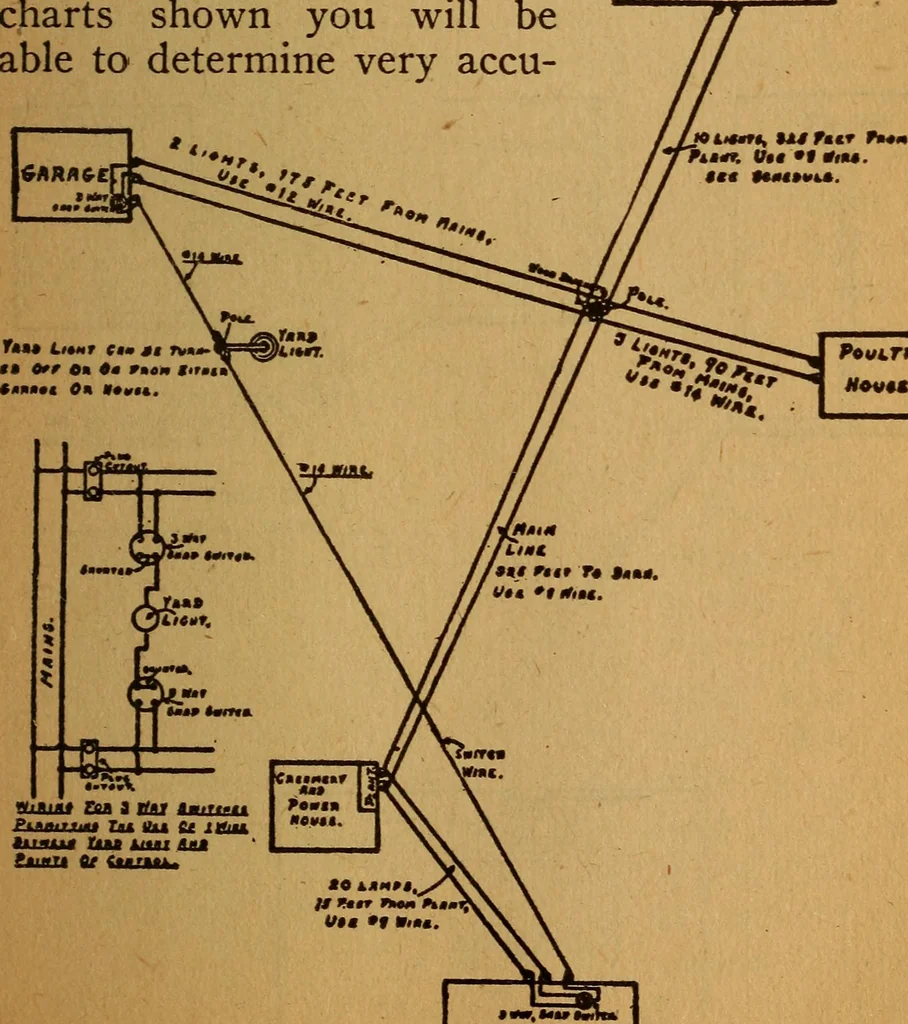

Wiring Electrical Circuits. 89 power. This is due to the fact that the amountof current or amperage required on a 32-voltcircuit is nearly four times as great as on the110-volt circuit. In selecting wires it is important to choose wirelarge enough to present anappreciable drop in voltage,for this… … DwtLUM*. Fig. 61. Wiring for outbuildings and yard light controlledfrom 3-point switch. 90 Home-Farm Power and Lighting. -VAftP LIGHT l 3 WAY SNAP SWITCH./SMUNTtD W1EING F.OE 3 WAY SWITCHES PEeMfTTINGTHE USE OF ONE WlBE SETWEEN YAfiT UGHTAND POINTS Of CONTROL - 1 £>AI2N . _—--- 3 WAY 9AI» -VI…
