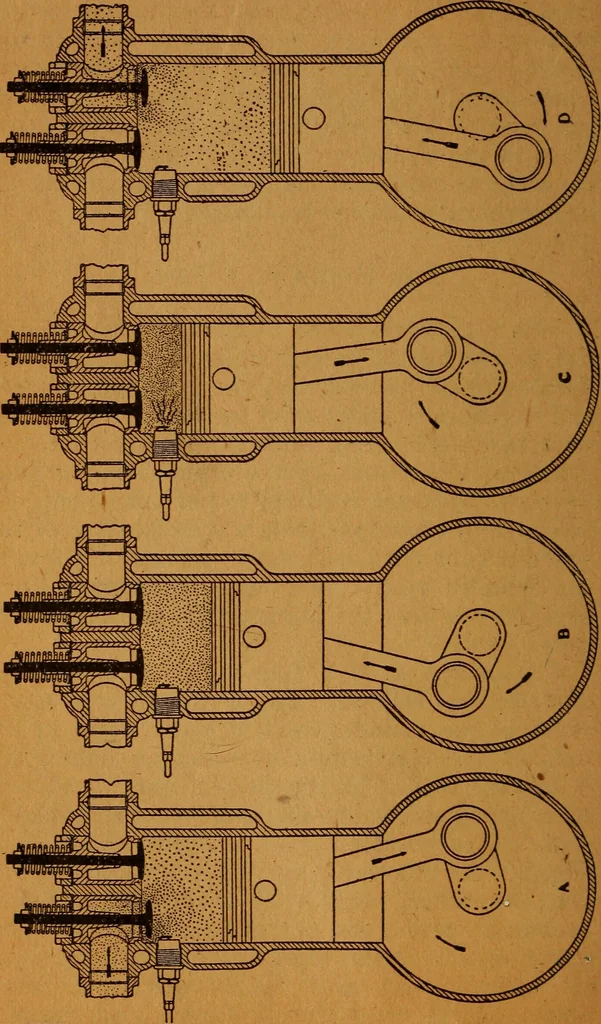

veis located, which at the proper time opens and places the combustion chamber in communicationwith the carburetor. This is illustrated at A inFig. 2. As this valve opens, the piston has cre-ated a partial vacuum in the cylinder, whichcreates a suction and pefmits gas to enter. ThisValve remains… … Principle of Engine Operation. 9 of the piston. During this up-stroke the chargeis compressed within the cylinder and preparedfor ignition. So far two operations, intake andcompression, have been performed on two pistonstrokes. The second operation being shown atB in Fig. 2. Immediately after…
