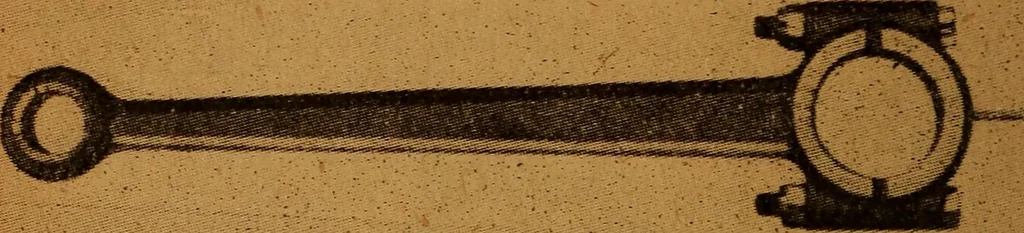

wheel, the functionof which will be explained later. Fig. 7 illus-trates a single-cylinder crankshaft, while Fig.8 illustrates a four-cylinder crankshaft andpiston assembly. €&**/? ~^/Ar7 : W/^5 TO W V • I j i_ ■ t - ._. J Fig. 8. Crankshaft, connecting rod and piston assembly fora… … Fig. 9. Connecting rod assembled with bearings. of the piston into rotary motion. This conver-sion of motion may be described as follows:When the piston is at its top dead center thecrankpin is standing vertical; however, as theexpanding gases force the piston downward, thecrankshaft is constrained…
