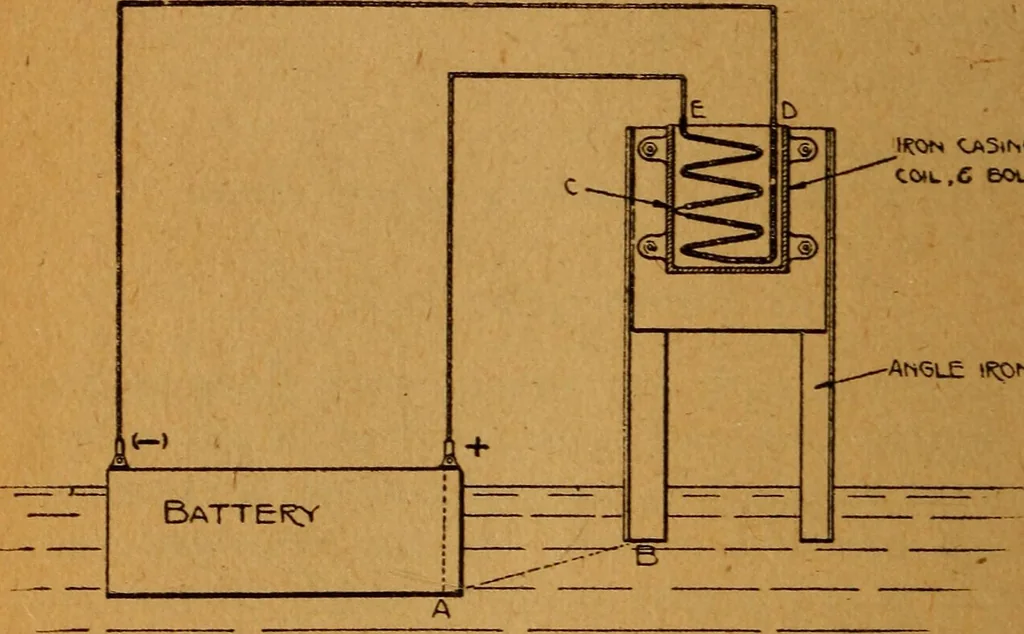

TTT?- Fig. 49. Diagram illustrating a short circuit. 78 Home-Farm Power and Lighting. A Ground. A ground is of the nature of a short-circuit;it can be a by-passing of current, a leakage or adead short. Fig. 50 illustrates in a generalway how a ground could occur. The battery issetting on a damp… … IKON 0>.5tNG A^OohDCOi.,6 BOlTEC) TO F^fcMfc -Af-i<3L£ t^£>H ^fPAMC Fig. 50. Diagram illustrating a ground. the casing and the current will leak from positive( + ) on the battery (assuming that the batteryhas overflowed and acid forms a circuit or pathfrom terminal to ground on floor) to A…
