Scott, Rhea C. (Rhea Clarke) · Philadelphia and London, J.B. Lippincott company · leaf 106

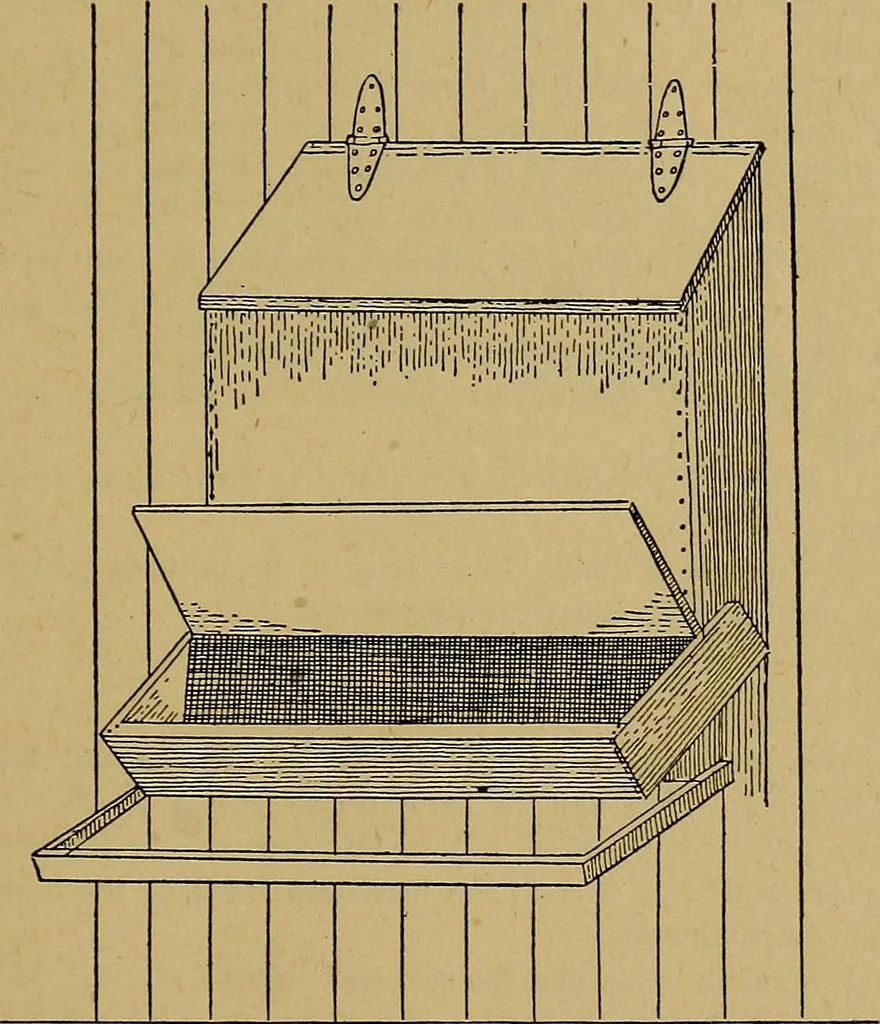

the front piece (i X 5 X 19)on the front of the trough with one pair of i V2 (butt) hinges.The other pair of hinges is used to fasten the top (i X 9 X 19) on thehopper. Make the roost by nailing the two sides (i X 2 X 15) to the front(i X 2 X 21)■ Fasten this frame on the sides of the hopper with… … 92 HOME LABOR SAVING DEVICES DRY MASH HOPPER NO. 2This model is constructed very much Hke the hopper already-described with the exception of the four compartments whichprovide for a balanced ration for the chickens. It is not nailedto the wall but rests on the floor. Materials : 12^5/2 poplar. I…
Home Economics · Woodwork
